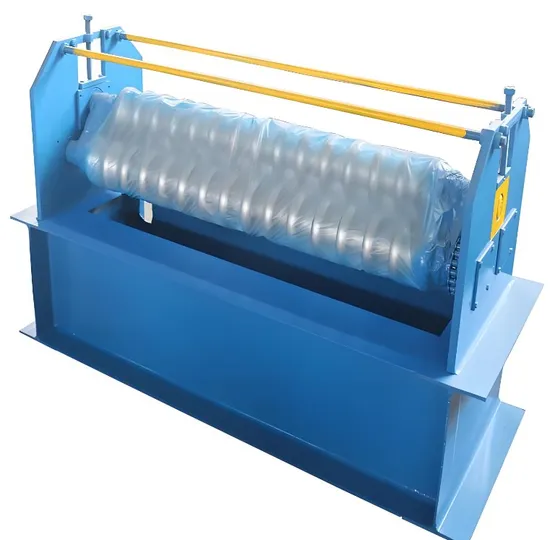

Horizontal Curving and Profiling Machine Efficient Automated Shaping Equipment

Product Description

1-Product Feature of
The colored steel tiles produced by this machine look beautiful ,elegant and noble .They are widely used as the roof of garden ,factory ,hotel,exhibition center and villa ,etc .

No.	item		Parameter(all is subject to our final design)
1	Suitable raw material	Type	Common galvanized & pre-painted steel
		Yield strength	235MPa(or other high strength steel)
		Thickness(mm)	0.4-0.7
		width(mm)	According to final design
2	Manual uncoiler's capacity		Max.5tons
3	Forming speed(m/min)		About 18-20m/min
4	Main motor power(KW)		7.5kw
5	Hydraulic power(KW)		3kw
6	Forming roller groups		Around19-20 groups
7	Raw material of forming roller		High quality No.45 steel
8	Raw material of cutting blade		Cr12mould steel with quenched treatment
9	controlling system		Mitsubishi PLC& converter
10	Suitable industrial voltage		According to your special requirement
11	Machine dimensions(L*W*H)		6.8m×1.8m×1.52m
12	Machine weight		About 9-10tons

2-Machine components
Tile forming machine consist of uncoiler, coil sheet guiding machine ,covering film device ,main roll forming system, pressing device,cutting device,Hydraulic station ,PLC control system and support table .
3.Working flow
uncoiling the sheet---guiding the sheet---covering the film---roll forming punching the step---measuring the length---cutting the panel---panels to the supporter
Frequently Asked Questions (FAQ)
Q1: When Can I Get The Quotation?
A: We Usually Quote Within 24 Hours After We Get Your Inquiry. If You Are Very Urgent To Get The Price, Please Call Us Or Tell Us In Your Email So That We Will Regard Your Inquiry Priority.
Q2: How Can I Get A Sample To Check Your Quality?
A: After Price Confirmation, If You Need The Samples, We Will Charge For The Sample Cost. But The Sample Cost Can Be Refundable After Order Confirmation When Your Quantity Of The Order Is More About The MOQ.
Q3: Can You Do The Design For Us?
A: Yes. We Have A Professional Team that has Rich Experience In Outdoor Furniture Design And Manufacturing. Just Tell Us Your Ideas And We Will Help To Carry Out Your Ideas Into Perfect Furniture. It Does Not Matter If You Do Not Have Someone To Complete Files. Send Us High-Resolution Images, Your Logo, And Text, And Tell Us How You Would Like To Arrange Them. We Will Send You the Finished Files For Confirmation.
Q4: What About The Lead Time For Mass Production?
A: Honestly, It Depends On The Order Quantity And The Season You Place The Order. The Lead Time Of MOQ Is About 35 To 45 Days. Generally Speaking, We Suggest That You Start Inquiry Two Months Before The Date You Would Like To Get The Products in your Country.
Q5: How Do You Make Our Business Long-Term And Good Relationship?
A:1. We Keep Good Quality And Competitive Price To Ensure Our Customers Benefit ;
2. We Respect Every Customer As Our Friend And We Sincerely Do Business And Make Friends With Them, No Matter Where They Come From.

---
