Making Plain Brown 2 Ply Corrugated Paper Roll Single Facer Line Machine

Product Description

Making 2Ply Corrugated Cardboard Paperboard Single Facer Line Machine
PRICE AND PAYMENT

YK-1800 SINGLE FACER LINE
1	MILL ROLL STAND A: HYDRAULIC TYPE B: ELECTRIC TYPE	TYPE	MARK
			HYDRAULIC TYPE
2	SINGLE FACER A: STEAM HEATING B: ELECTRIC HEATING		STEAM HEATING
3	NC SHEET CUTTER A: COMPUTER HEAVY TYPE B: ELECTRIC HEAVY TYPE C: ELECTRIC LIGHT TYPE		COMPUTER HEAVY TYPE
4	RECEIVER		RECEIVER
INQUIRY	1800MM HYDRAULIC MILL ROLL STAND 280S STEAM HEATING SINGLE FACER 1800MM COMPUTER SHEET CUTTER RECEIVER
OFFER
PAYMENT	30% T/T IN ADVANCE, BALANCE PAID BEFORE SHIPMENT
PRODUCTION	WITH 60 WORKING DAYS AFTER RECEIVE DEPOSIT

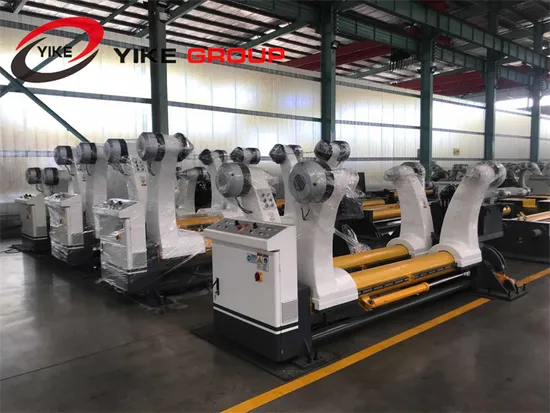

ZJ-V5B hydraulic shaftless mill roll stand Structural feature: Adopt hydraulic drive to complete the paper clamping,loosen,remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive. Brake adjustable adopts multipoint braking system. Every stand matched two sets paper car and they can paper on the both sides at the same time. Technical parameters: The range of clamping paper:MAX1800mm MIN1000mm Clamping diameters:MAX¢1500mm MIN¢350mm Main shaft diameter of paper holder:¢242mm Gas source work pressure(Mpa):0.4---0.8Mpa Equipment size:Lmx4.3*Wmx1.8*Hmx1.6 Single weight:MAX4000Kg Hydraulic system parameters: Work pressure(Mpa):16---18Mpa Lifting hydraulic cylinder:¢100×440mm Clamping hydraulic cylinder:¢63×1300m Hydraulic station motor power:3KW --380V -- 50Hz Solenoid valve voltage:220V 50 Hz Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	Material
Main shaft	Day steel production	Diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
Wallboard	Jigang prduction	Q235AWelding parts
Bearing	HRB,ZWZ,LYC
Toothed chuck	Zhejiang xusheng	3,4inch shared
Main electrical appliance	France Schneide
Button	CHINT NP2series
A switch	French Schneide
Pneumatic components	Japan SMC or Taiwan Airtac
Hydraulic station	Shandong zaozhuang
Brake pump	Zhejiang

SF-280S fingerless type single facer Structural features: Electric heating model with 18 heating tube (If steam heating, ignore this item). Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer. Base and wallboard cast iron wall. Wallboard thickness130mm, Universal Joints. Pressure roller ¢284mm,surface grinding and chrome-plated, cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices). Pneumatic control glue to glue back, glue roller diameter ¢215mm. Engraved polished surface after a 36-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated. Corrugated roller, pressure roller materials provided by the Central Plains Steel. High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder. Preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose. Regular technical parameters: Effective width:1800mm Operation direction:left or right(determined in accordance with customer plant) 3Design speed:100m/min working speed:40m/min Temperature range:200-260ºC Corrugated flute:(UV type or UVV type) Roller diameters parameters: Diameter of corrugated roller: ¢280mm Diameter of pressure roller: ¢284mm Diameter of glue roller: ¢216mm Diameter of preheat roller: ¢320mm Powered motor parameters: Main drive motor: 7.5Kw Rated voltage:380V 50Hz Continuous (S1) working standard Suction motor: 7.5Kw Rated voltage:380V 50Hz Continuous (S1) working standard Main purchased parts,materials and place of origin:

Name of main parts	Brands or place of origin	Material and type
Wall and Pedestals	Production own	HT200
Rotary joints and metal hoses	Shan dong teng zhou luguanqiu
Main drive motor	Hebei Hengshui	7.5kw speed motor
Bearing	HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing	Zhengjiang five rings
High pressure air	Shanghai Yingfa
Cylinder	Zhengjiang Sanzheng
Contacts	Chint or de li xi

NC-1800 COMPUTER SHEET CUTTER MACHINE Structural features: It can save 200 sets of orders, replace the cutting specifications quickly and accurately, non-stop for a single, and can achieve computer networking, easy production management. Knife shaft drive gear with eccentric shaft installation, to achieve no backlash drive, high transmission accuracy. Cross-cutting knife with inserts steel blade. Fixed blade blade flat structure, more stable, more suitable for cutting high weight and high toughness of cardboard, the shear force is small, long blade life. Pull paper roller outsourcing non-slip material, more wear-resistant, accurate size. Host base and wall panels with high-grade gray cast iron, high strength, strong anti-vibration. Servo controller control motor drive, 5.7 inch color touch screen display, the project at a glance. cutting length: 300mm-9000mm, cutting accuracy: ± 1.5mm (steady speed). General technical parameters: Working width:1800mm Mechanical speed:60m/min Minimum cut length:300mm Maximum cutting length:9000mm Cutting accuracy: uniform speed ±1.5mm Power motor and electrical parameters: Main drive motor power:3KW Full AC Synchronous Servo Control Papermaking motor power:3KW(Frequency) Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	Material and type
Inverter motor	Hebei hengshui	3kw
Contactor	Schneide	French
Servo AC driver	Keweida
Bearing	HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing	Zhengjiang five rings
Screen	MSGC
Inverter	INVT

Rotary paper receiving machine The machine receiving the highest speed 70m / min. The maximum length of the machine to receive paper 1800mm. The machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker. The maximum stacking height of the local stacking unit is 100mm. The automatic stacking machine covers an area of small, and save manpower, is the best choice for low-speed machine.
