Semi Automatic Pet Blow Molding Machine

Product Description

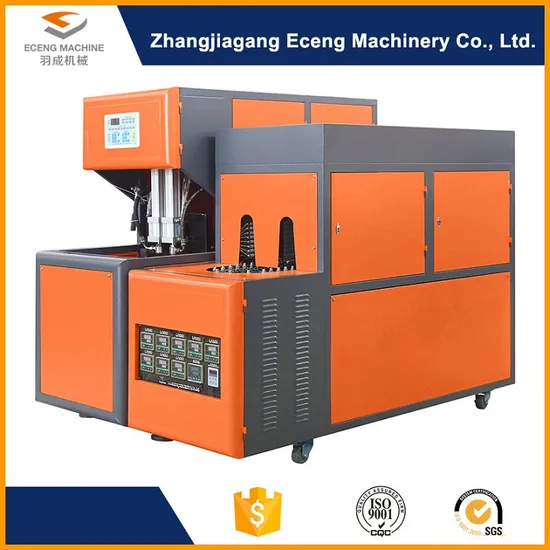

Semi automatic PET blow molding machine
Model: YC-2L-2
Product max volume: 2L
Suitable for blowing bottles between 200ml to 2000ml
Necessary auxiliary devices: High pressure air compressor, Air filter.
Semi-automatic blow moulding machine
1. Use integated mic computer controler, with OMRON control chip, the response speed is very quickly and the timing very precisely. Use life durable and failture rate very low. It's the revolutionary product of industrial control.
2. High responsiveness pneumatic components, action timely and precisely.
3. Thorough safe operation mechanism, start-up with two hands, avoid the accident during the operation.
4. Infrarted heating technology, safe and energy conservation, no pollution of the environment. With the 8 rates adjustable temperature controler, make the temperature suitable for blowing.
Technology Advantage
1. Special design, high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation, no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke, quick action
8. All ZG45 casting, with long timing process, very small transformation, can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion
Service
Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you install the machine; From setting machine, testing, and to check the machine is on the good working condition. There is a litter charge, only for flight charge and accommodation.

Main machine (blower + oven)	Model type	Technical data
Product Spec	Max. product volume(L/cav)	2
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	2
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mould size(mm)	390*345
	Mould thickness	Adjustable
	Mould spacing(mm)	Adjustable
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	1000-1200
	Machine size(LxWxH)(m)	1.46*0.58*1.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.35*0.55*1.15
	Oven weight (KG)	300

Technology Advantage
l. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion
It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines.
Transportation:
It is located in the beautiful port city of Zhangjiagang with convenient traffic; it's about 150 km away from Shanghai.
Products:
PVC/HDPE/PP-R pipe extrusion line, PVC & WPC profile extruding line and plastic sheet production lines with the relative auxiliary machine, PE film/ PET bottles recycling line and pelletizing lines.
Market:
Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We received the universal confirmation and trust from our customers except of the precious experience.
Idea:
Abide by the logos of "Sincerity, Development, innovation, Win-Win" constantly, we are honorable to cooperate with friends at home and abroad by providing the high quality products, technology and service!

---
