Product Description

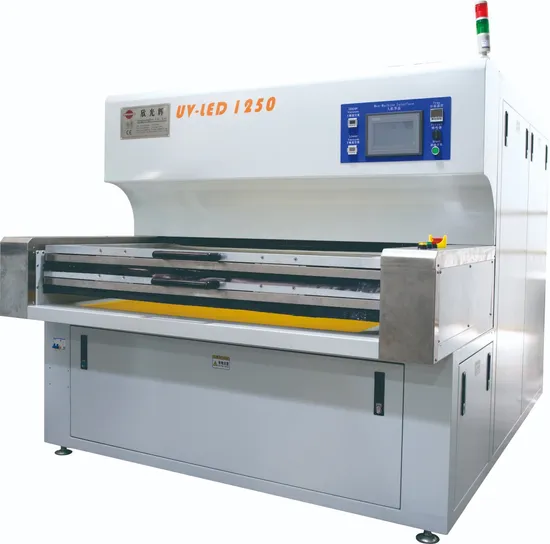

| model number: | UVLED-1250 |
| Exposure light source: | High-power ultraviolet LED array lamp set |
| uniformity: | More than 90% |
| Exposure way: | Namely bright control |
| Exposure select: | Single / double-sided exposure |
| LED lamp life: | ≥three years |
| Vacuum device: | Oil-free vacuum pump, vacuum degree of 90 kpa |
| cooling-down method | Forced air cooling type |
| exposure energy control: | Precise time control of the human-machine interface |
| Effective exposure area: | 1250mm*650mm |
| resolution : | 1,2mil,thickness of dry film ≤20um;
2,3mil,thickness of wet film ≤20um,thickness of dry film ≤40um |
| mesa structure | Mylay + glass |
| control system: | Japanese omron PLC + touth screen control |
| operation interface: | chinese and english, 4 groups of exposure time selection, exposure power 10% -100% infinite adjustable |
| major structure: | Standard board electrostatic spraying paint |
| safe guard : | Abnormal emergency stop, over temperature protection, over current protection, short circuit protection, leakage protection |
| Electricity demand: | AC220V 50Hz 4KW single phase |
| Environmental requirements: | Temperature 22-25ºC, humidity 55-60%, dust-free requirement level 10000 |
| Outline dimension: | L1750*W2900*H1700mm |
| weight of equipment: | 1100KG |
| Equipment advantage: | 1, add secondary optics, parallel optical structure, good exposure accuracy, high yield. |
| 2, equipped with light gate to prevent ultraviolet leakage, protect the health of operators. |
| 3, copper-based PCB light board, good heat dissipation, high lamp source life. |
| 4, Korea LG / SVC imported high-power UV LED, high light efficiency, long life and stable performance. |
| 5, Japan omron program controller, Japan Panasonic sensor, to ensure the equipment. |
| 6, equipped with Taiwan high-power oil-free vacuum pump, high vacuum degree, will not produce secondary pollution. |
| 7, the disassembly frame design structure, the replacement more quickly. |
| 8, use the intelligent touch screen and PLC automatic control program |
