Basic Info.
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE
Production Capacity
10000
Product Description
Product Description

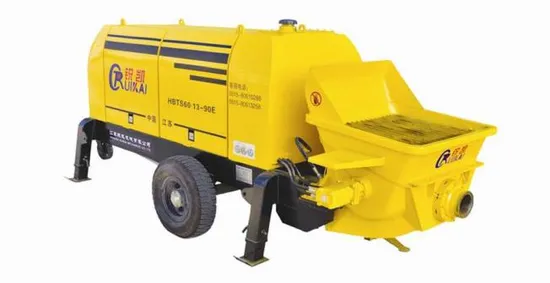

Trailer Concrete Pump Diesel Engine Type With Pipelines/Mixer Cheapest Prices Offer
HBT30 HBT40 HBT50
Technical Parameters:
| Model No./Concrete pump | HBT40 |
| Max. theoretical concrete output(m³/h) | Low pressure 48 /high pressure 23 |
| Max. theoretical concrete pumping pressure(Mpa) | Low pressure 5.3 /high pressure 11 |
| Theoretical vertical conveying height(m) | 150 |
| Theoretical level transmission distance(m) | 400 |
| Allowing the concrete slump(mm) | 100-230 |
| Max. Aggregate particles(mm) | 40/35 |
| Hopper volume(m³) | 0.5 |
| Filling height(mm) | 1100 |
| Concrete cylinder diameter × stroke(mm) | Φ180×1800 |
| Main oil cylinder diameter(mm) | Φ100 |
| Max stroke(mm) | 1800 |
| Dynamic brand | Diesel engine |
| Dynamic model | R4105ZD2 |
| Rated power(kw) | 66 |
| Fuel consumption(g/h.kw) | 227 |
| Hydraulic system | Double circuit opening system |
| Brand of main pump | Kawasaki |
| Discharge of main pump(ml) | 112 |
| Max. hydraulic system pressure(Mpa) | 25 |
| Hydraulic oil tank volume(L) | 320 |
| The radiator cooling | Air cooling system |
| Electric control | PLC |
| Concrete tube conveying diameter(mm) | Φ108/Φ133 |
| Max. towing speed(km/h) | 15 |
| Overall dimension(L×W×H)(mm) | 4850×1670×2070 |
| Total weight(kg) | 3360 |
| Hydraulic pump type | Ram pump |
Covered pipes and accessories for Free
List:
Concrete pump (HBT40-11RSD): 1 set
φ108(4m) HYD Hoses: 2 pieces (8m)
φ108(3m) Steel pipe: 34 pieces (102m)
φ108(1.5m) Steel pipe: 2 pieces (3m)
φ108-90°Elbow pipe: 4 pieces
φ108-45°Elbow pipe: 2 pieces
S100 clamp: 50 pieces
S125 clamp: 2 pieces
φ133 -φ108 reducer pipe:1 piece
Piston: 2 pieces
Seal ring: 1 piece
Proximity switch: 1 piece
Toolbox: 1 piece
More Products:
Wheel loader, Min. loader, Excavator, Bulldozer, Backhoe Loader, Skid Steer loader
Concrete pump, Trailer Concrete pump, Concrete mixer truck, Concrete Batching Plant
Tower Crane,Truck Crane, Rough Terrain Crane, Crawler Crane, Truck Mounted Crane,
Forklift, Telescopic Handler, Reach Stacker, Overhead Crane, JIB Crane, Moving cart
Tank Truck Trailer, Tank Truck Trailer, Fuel Tanker Truck, Water truck, Water Tanker
Asphalt Mixing Plant, Asphat Concrete Paver, Road Roller, Motor Grader,
Dump truck, Tractor head, Cargo truck, Semi-Trailer, Special Vehicle
Horizontal Directional Drill, Rotary Drilling Rig, Road Header, Diaphragm Wall Grab
Crushing equipment, Grinding equipment, Feeding&Conveying,Screening&Washing
Tractor, Harvester
Spare Parts and etc.
Remarks: price depend the request details
>>
