SUN-PLC Fiber Optic Splitter, A Premium Quality Planar Light Wave Circuit (PLC) Splitter with Splitting Ratio: 1X2/1(2)X4/1(2)X8/1(2)X16/1(2)X32/1(2)X64

Product Description

Product Description

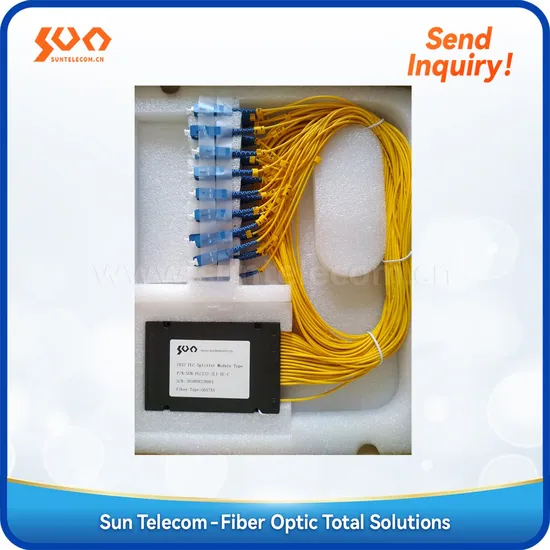

SUN-PLC Fiber Optic Splitter Sun Telecom's SUN-PLC series of planar light wave circuit (PLC) splitter is optical power management device which uses silica optical waveguide technology. It has small size, high reliability, wide operating wavelength range. It is widely used in PON networks and realizes optical signal power splitting.

Features Low insertion loss Low PDL High reliability and stability Good channel uniformity
Applications FTTH project CATV network PON network
Specifications

Parameters	Specification
Type	1x2	1 x 4	1 x 8	1 x 16	1 x 32	1 x 64
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	≤3.8	≤7.1	≤10.2	≤13.3	≤16.5	≤19.8
Loss Uniformity (dB)	≤0.3	≤0.3	≤0.3	≤0.5	≤0.5	≤1.0
PDL (dB)	≤0.08	≤0.08	≤0.08	≤0.1	≤0.1	≤0.2
Return Loss (dB)	≥55
Directivity (dB)	≥55
Wavelength Dependent Loss (dB)	≤1.0
