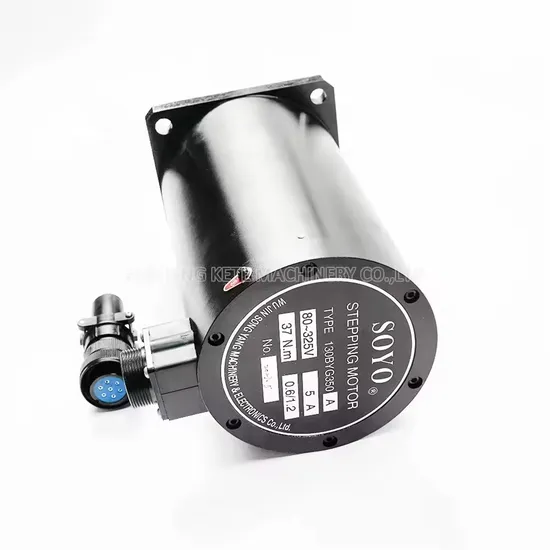

130byg350A Soyo Stepping Motor Controller for Bag Making Machine 3-Phase Stepper Motor

Product Description

Product Description
FeatureThree phase hybrid stepping motors, typical application areas: manufacturing machinery and equipment, OA financial equipment,automobile lights, gate control, automation control. Characteristics and Features:
1. The silicon steel rotor is precision forged with imported silicon steel material, and each rotor is finely ground and polished on the outer edge to ensure that each tooth groove is smooth. 2. The surface is coated with imported rotor glue to prevent the increase of motor noise caused by the oxidation of carbon steel, so that the motor runs stably, with lower noise and longer life, and no jamming phenomenon. 3. The motor coil is made of copper enameled wire, which can withstand high temperature of 150°. Fully automatic intelligent winding equipment, evenly arranged, lower temperature rise, stable long-term transportation without losing steps. 4. Aluminum shell, pure aluminum shell, light and strong, durable and wear-resistant, lower temperature, convenient and practical. 5. Fine parts are made of aluminum alloy flange, which has good heat dissipation effect, high precision inner hole and stable operation. 6. The control precision is high, the position encoder is installed, the vector control technology is adopted, and the high-precision servo driver is used, the closed-loop effect can reach 0.001MM, which fundamentally solves the problem of traditional motors losing steps. 7. The torque-frequency characteristics are good, the high-speed performance of the hybrid servo drive system is more than 30% higher than that of the open-loop stepper, and the effective torque can be increased to more than 70% of the holding torque, so that the motor can maintain high-torque operation during high-speed processes. 8. With overload capacity, high-performance rare earth, permanent magnet materials, strong anti-demagnetization ability, low inertia, high power density, super overload capacity, stronger acceleration performance.

Product name	Three-phase stepper motor
Model	130BYG350A
Holding Torque	37 N.M (Nm)
Motor Length	226mm
Motor Voltage	80-325V
Wiring	Seven-pin plug
Motor Weight	18kg
Insulation Resistance	50OVDC100MQMin
Dielectric Strength	50OVAC 1 minute
Ambient Temperature	-20°C--+50°C
Resistance Accuracy	Soil 10%
Inductance Accuracy	±20%
