US$350.00-550.00
|
1 Piece
(MOQ)
|
Basic Info.
Measuring Range
Medium-pressure Gauge
Accuracy
0.1%Fs 0.05% 0.2%Fs
Application
Industrial, Civil
Structure
Fluid Column Pressure Gauge
Connection Type
Radial Direction
Function
Electric Signal-controlled, Datalogger
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Thread Connection
330 Rotation
Connection
M20 G1/2 G1/4 1/4NPT 1/2NPT ,Customized
Working Temperature
-5-40ºC
Production Capacity
50000piece/Year
Packaging & Delivery
Package Size
30.00cm * 25.00cm * 15.00cm
Package Gross Weight
1.800kg
Product Description
Product Description

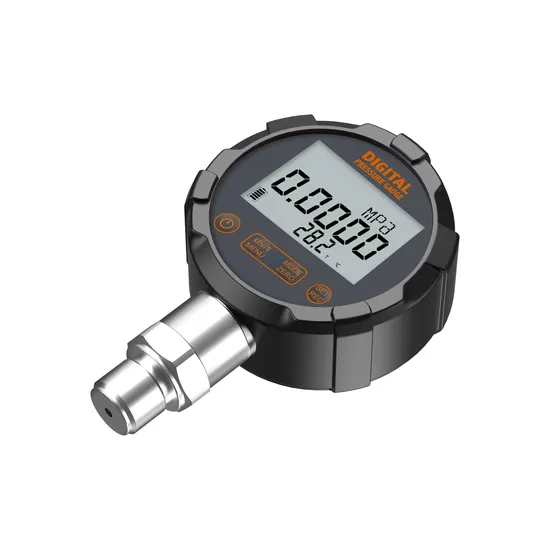

The high-precision digital pressure gauge is a high-precision pressure gauge that can rotate 330°. It uses split-screen display on the main screen and the secondary screen. The main screen displays real-time pressure, and the split-screen displays the ambient temperature, maximum pressure, minimum pressure, and range. Range and other reference data.
The product has powerful functions and can switch between multiple common pressure unit displays. The pressure collection rate is adjustable, and the collected data can be recorded and exported through a type-c data cable or Bluetooth function. Various parameters can be set through Bluetooth function or buttons
The device comes standard with type-c external power supply, optional type-c external power supply + 3 AAA batteries or type-c external power supply + rechargeable battery power supply, multiple power supply modes, more convenient to use.
TECHNICAL CHARACTERISTICS: 1. Original imported pressure sensor, accuracy 0.05%, 0.1%, 0.2% optional
2. Dial can be rotated 330°
3.It can record up to 270,000 pieces of data, and the data can be exported through a computer or Bluetooth app.
4.Multiple power supply modes: optional type-C external power supply + 3 AAA batteries or type-C external power supply + rechargeable battery power supply
5.Up to 15 pressure units can be switched, with a wider range of applications
6.Bluetooth function, can set various parameters
7.(-0.1...0~0.1...1...10...70)MPa
APPLICATION: Machinery and electronics industry
Instrumentation supporting
Pressure laboratory
Construction machinery automation
Replace analog pressure gauge, it can be used as standard pressure gauge and used tocalibrate pressure transmitter and ordinary pressure gauge
SPECIFICATION:
| Range | (-0.1...0~0.1...1...10...70)MPa |
| Overload Pressure | 150% |
| Power Supply | type-C external power supply + 3 AAA batteries or type-C external power supply + rechargeable battery power supply |
| Dial Size | 85mm |
| Accuracy | 0.05%FS 0.1%FS 0.2%FS; |
| Ouput Signal | Without |
| Data storage | Can store 10 records, each record can hold up to 27,000 data, totaling 270,000 data |
| Working Temperature | -5~ 40C |
| Backlight Color | Green |
| Sampling Frequency | 0.1-10 times/second |
| Measuring Medium | Gas or liquid compatible with 316 stainless steel |
| Connection | M20*1.5 ,G1/2,G1/4 or customized |
| Connection Materials | 304 SS |
| Rotation Angle | 330° |
| Product Function | Power on/off Backlight Clear Unit switching Extreme value display Temperature display Data recording and export |
| Shell Materials | Cast zinc |
| Protection Grade | IP65 (IP67 optional) |
DIEMENSION:
>>
