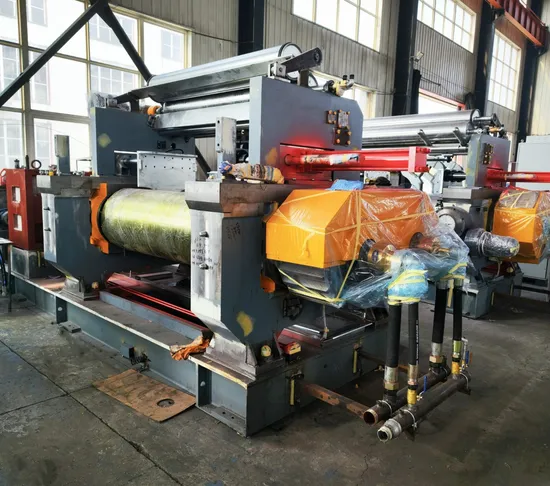

Strong Quality Xk-450 Xk-550 Open Mixing Mill /Two Roll Rubber Mixer

Product Description

Strong Quality XK-450 XK-550 Open Mixing Mill /Two Roll Rubber Mixer Product Description Features:

1).Hardened gears reducer ,low noise ,high quality ,competitive price

2).The machine main uses are following in rubber product factory: Natural rubber refining, raw rubber and compound mixing. Rubber beating, mixing and rubber tab letting.

3).This machine is double roller opening to be used for rubber mixing. It consists of seat, Frame, Rubber, Driving device, Lubricator and cooler, range adjusting device of roller. Safety brake, Motor and reducer, etc.

4).The roller is made from safety cooled and hard cast steel, smooth surface is polished. in term of different case. Saturated steam and cooling water can be inputted in the empty roller to adjust speed of roller. Colloidal particles are drawn into the gap of the two rollers which make relative rotation in different velocity to mix rubber
Product Parameters

Model	XK-160	XK-250	XK-300	XK-360	XK-400	XK-450
Working diameter of rolls(mm)	160	250	300	360	400	450
Working length of rolls(mm)	320	620	750	900	1000	1200
Working linear speed of front roll(m/min)	9	15.1	15.73	16.25	18.65	24.5
Speed ratio of front and rear roll	1:1.35	1:1.1	1:1.17	1:1.25	1:1.27	1:1.27
Max. gap (mm)	4.5	7	10	10	10	10
Max. Capacity per batch(kg)	1-2	10-15	10-20	20-25	18-35	25-50
Driving motor power(kw)	5.5	18.5	22	37	45	75
Overall size(L*W*H) mm	1080*796*1415	3400*1350*1500	3580*1550*1695	3940*1780*1740	4200*1850*1870	5200*2380 *1770
Around weight(tons)	1.1	3.5	5.2	6.5	7.6	12.0

Model	XK-550	XK-560	XK-610	XK-660
Working diameter of rolls(mm)	550	560/510	610	660
Working length of rolls(mm)	1530	1530	2000	2130
Working linear speed of front roll(m/min)	22.5		30	28.6/25.8
Speed ratio of front and rear roll	1:1.2	1:1.2	1:1.098	1:1.24 1:1.09
Max. gap (mm)	15	15	15	15
Max. Capacity per batch(kg)	50-65	50-65	90-120	100-150
Driving motor power(kw)	110	110	160	180/250
Overall size(L*W*H) mm	6320*2180*1880	6500*2300*2000	6475*3146*2035	7465*3662*2750
Around weight(tons)	22	22	34.5	43/47

Packaging & Shipping Company Profile
