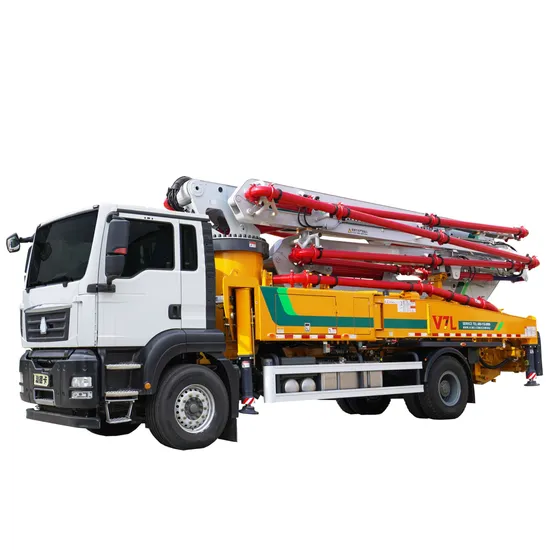

37m 40m Concrete Pump Truck Hb37V Concrete Boom Pump with Factory Price

US$128,000.00
1-4 unit
US$120,000.00
5+ unit

Basic Info.

Model NO.
HB37V
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
120m²/h
Feeding Height
36.5m
Vibrating Amplitude
-
Certification
ISO9001: 2000, CE
Condition
New
Color
Optional
Product Name
37m Concrete Pump Truck
Model
Hb37V
Theoretical
120/80m³/H
Concrete Pumping Pressure
8.7/13MPa
Reach Height
36.5m
Reach Depth
24.9m
Overall Weight
23000kg
Outline Size
10080*2525*3750mm(L*W*H)
Transport Package
Comply with Export Packaging Requirements
Specification
12300*2540*4000mm
Trademark
Top Brand China
Origin
China
HS Code
8705909100
Production Capacity
50000 Pieces/Year

Packaging & Delivery

Package Size
10080.00cm * 2525.00cm * 3750.00cm
Package Gross Weight
23000.000kg

Product Description

Product Description
The HB37V concrete pump truck is equipped with more efficient skirt valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
It adopts Sitrak chassis, which complies with China 6 emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performance. Advantages and Features

1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Product Parameters
Category Item Unit HB37V
Overall Outline dimension mm 10080×2525×3750 9900×2525×3750
Overall weight kg 22870 23000
Chassis Brand / Sitrak
Model / ZZ5237N521GF1/PAD752 ZZ5231N521GE1
Wheelbase mm 5200
Max.power kW 228 225
Emission standard / China VI China V
Pumping system Theoretical m³/h 120/80
Concrete pumping pressure MPa 8.7/13
Placing boom Reach height m 36.5
Reach depth m 24.9
Slewing radius m 32.5
Others Transfer / S valve

Detailed Photos
