4s-16s 12V/24V/36V/48V/60V 200A High Current BMS for 57.6V 59.2V Li-ion/Lithium 48V 51.2V LiFePO4 Battery Pack with I2c and Bluetooth

Product Description

Technical parameter

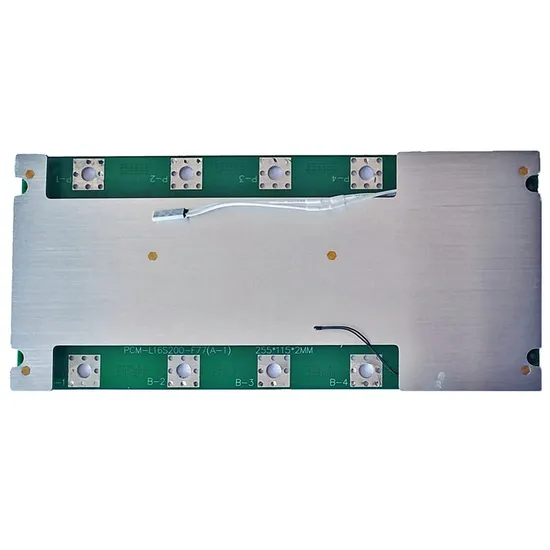

Product name:Protection Circuit Module
Model No:PCM-L16S200-F77
For 4~16S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 4-16 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Connect with special upper computer software, which can display the total voltage, capacity, current, temperature, cycle times and other parameters;
3, cooperate with communication adapter module supports HDQ, I2C Communication protocol;
4. Connect to the special APP via bluetooth;
5. The measurement IC adopts TI BQ series, which can read the parameters such as voltage, capacity, current, temperature, cycle number, etc.
6, with over charge, over discharge, short circuit, over current, temperature protection;
7. The maximum continuous working current is 200a, with the same interface for charging and discharging;

Protection Circuit Module Specifications For 59.2V Li-ion/Li-Po Battery Pack
No	Test item (Test at normal temperature 25±2ºC and relative humidity≤90%)		Criterion
1	Communication Interface		HDQ or I2C
2	Capacity	Designing battery capacity(PCM)	100-200Ah
		Max capacity(Battery pack)	320Ah
		Min capacity(Battery pack)	100mAh
		External capacity Indication	LED
		Gas gauge algorithm	Impedance Track
3	Voltage	Charging voltage	DC: 67.2V CC/CV(4.2V/1cell)
		Cell-balance detection voltage (Charge balance)	4.2±0.03V
		Cell-balance release voltage	4.2±0.025V
		Cell-balance detection delay time	0.96~1.4s
4	Current	Balance current for single cell	68±5mA
		Normal operating-mode current (Gas Gauge IC)	600uA
		SLEEP operating-mode current (Gas Gauge IC)	250uA
		FULL SLEEP operating-mode current (Gas Gauge IC)	100uA
		Maximal continuous charging current	200a(Max)
		Maximal continuous discharging current	200a(Max)
5	Over charge Protection	Over charge detection voltage	4.25±0.025V
		Over charge release voltage	4.05±0.05V
		Over charge detection delay time	0.5~2S(can adjust)
6	Over discharge protection	Over discharge detection voltage	2.5±0.07V
		Over discharge release voltage	3.0±0.1V
		Over discharge detection delay time	0.5~2S(can adjust)
7	Over current protection	Over current detection voltage	0.2±0.015V
		Over current detection current	800±200a(can adjust)
		Detection delay time	0.5~2S(can adjust)
		Release condition	Cut load
8	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-800us
		Release condition	Cut load ,
9	Resistance	Protection circuitry (MOSFET)	≤20mΩ
10	Temperature	Operating Temperature Range	-40~+85ºC
		Storage Temperature Range	-40~+125ºC
Dimension		L255*W115*T15mm
B+:Battery+
B-:Battery-
SDA:I2C data line
SCL:I2C clock line
RT1:NTC
P+:Discharge+
P-:Discharge-

---
