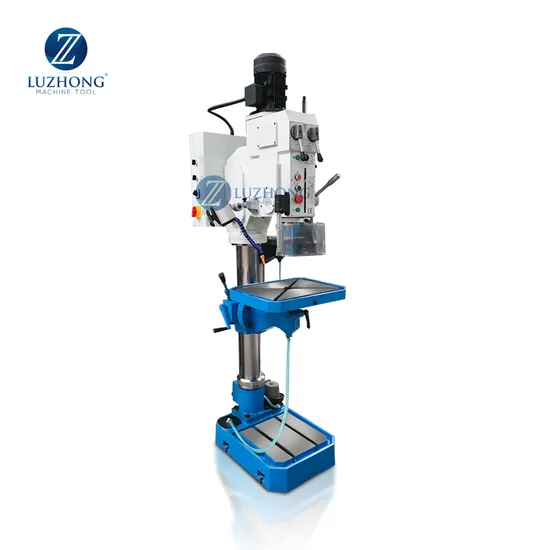

Z5030A high precision metal vertical drilling machine

Product Description

Z5030A high precision metal vertical drilling machine
Product Description
Product Parameters

SPECIFICATIONS	Units	Z5030A
Max. drilling dia.	mm	30
Diameter of column	mm	120
Spindle travel	mm	135
Distance between spindle nose and table surface	mm	550
Distance between spindle nose and stand table	mm	1100
Distance from spindle axis to column surface	mm	320
Spindle taper	-	MT4
Spindle speed range	rpm	125-3030
Spindle speeds steps	-	12
Spindle feed range	mm/r	0.1-0.3
Spindle feed steps	-	3
Table size	mm	500*420
Table travel	mm	520
Stand table size	mm	645*455
Main motor power	kw	1.1/1.5
Coolant motor power	w	40
Machine weight	kg	410
Overall dimension	mm	875*510*2100

Detailed Photos

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
