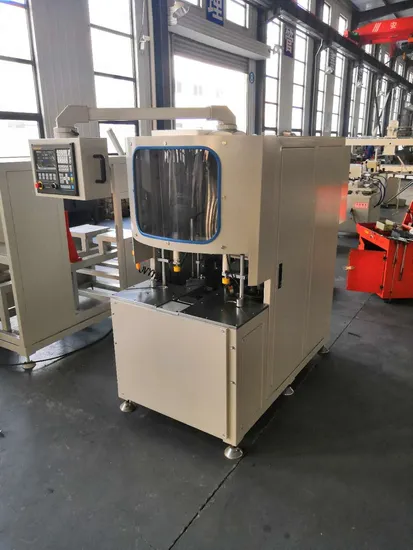

CNC Corner Cleaning Machine for PVC/UPVC Profile

Product Description

Product Description
Specification:
Used for UPVC window profile welding corner cleaning. CNC System can store more than 100 processing data. It can clean outside vertical surface, up/bottom welding seam. High precision processing due to size tolerance compensation function. Circular interpolation function to ensure the good cleaning result. YASKAWA servo motor system. Within 25 seconds finish one corner complete cleaning. Totally 4 cutters will be automatically cleaning surface, outside corner, vertical. No need tool change. Product Parameters

Technical Parameter:

Air Pressure:	0.5MPa~0.8MPa
Air Consumption:	60L/min
Input Voltage:	380V 50Hz
Input Power:	3KW
Main Cutter Revolution:	2800r/min
Profile Height:	30mm~120mm
Profile Width:	20mm~120mm
Overall Dimension:	2000mmx1820mmx1500mm
Weight:	600kg

Certifications
Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.

Machine at old customer

Packaging & Shipping
After Sales Service

Pre-sale serviceFree contact for the most suitable machine
Free professional design for each customer especially.
After sale service24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
Payment
L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal. FAQ

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4.If i want to established a new PVC window and door workshop ,what other machine we need

---
