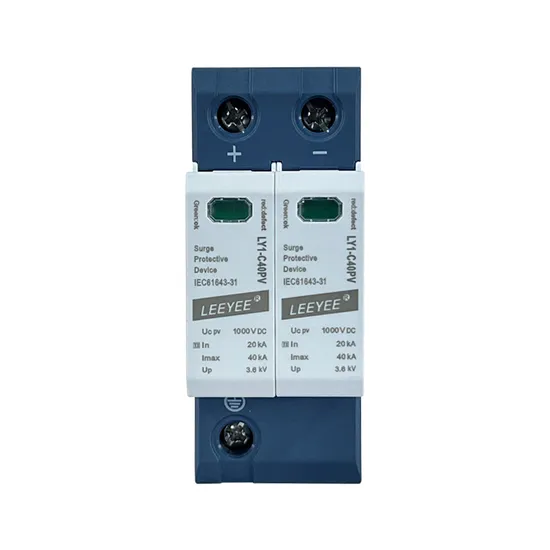

2p 1000V DC 40ka MOV Class II DIN Rail DC Solar Surge Protective Device

Product Description

Product Description This DC surge protective device is applied low voltage standard IEC/EN 61643-11 to protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage. Widely used in photovoltaic comber box, power inverter, DC distribution cabinet etc. It has advantages of large discharge current, fast respond time, low residual voltage. Max. PV voltage up to UCPV ≤1000V dc.
Main features
1. High discharge capacity, quick response, plugged module.
2. Fast response time, din rail installation.
3. Double thermal disconnection devices, provide more reliable protection.
4. Green window means normal, red means defect, need to change module.
5. Remote signaling contact optional.
6. T1+T2 surge protection.
Product Parameters

Model	LY1-C40PV
Test standard	IEC/EN 61643-31;GB18802.11
SPD type	T1+T2/Class I+ II
Max. PV voltage [ Uc pv ]	1000V DC
Nominal discharge current (8/20µs)	20kA
Maximum discharge current(8/20µs)	40kA
Iimp current (10/350µs)	6.25kA
Poles	2P/3P
Voltage protection level Up pv	3.6kV
Response time Ta	25ns
Connection wire specification	4mm2(L/N); 6mm2(PE)
Mounting	35mm Din Rail
Matched fuse or circuit breaker	32A
Type of remote signaling contact (Optional)	C+NC: Normally closed C+NO: Normally open C: Common contact
Max. Voltage/Current for remote signaling	1A/2A/3A 125V AC
Wiring for remote signaling	1.5mm2 max.
Operating temperature	-40°C to +80°C
Shell material	UL94-V0 fireproof material

Detailed Photos
Company Profile
Certifications
Our Advantages
FAQ 1. Who are we?
We are based in Zhejiang, China, start from 2010,selling surge protectors to overseas. There are total about 101-200 people in our factory. 2.How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? AC Surge Protective Device,DC Surge Protective Device,Power Distribution Unit,Signal Surge Protective Device,T1 Surge Protective Device 4. Why should you buy from us not from other suppliers? Over 12 years factory, professional manufacture in dc surge protector, ac surge protector, signal surge protector,surge protection box,lightning rod, lightning strike counter and related lightning products, CE TUV certificated. OEM and ODM service supply. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,Express Delivery; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type:T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese

---
