ETHERNET CABLES 100 Ω 2PK211

Product Details

Product Description

Product Description

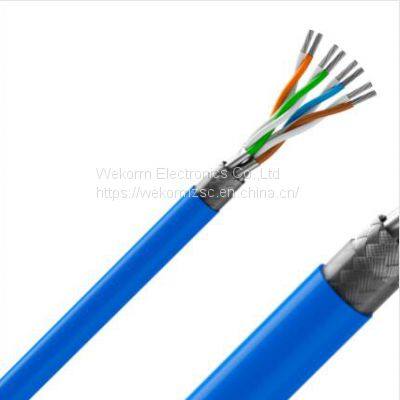

Nexans Ref.: 2PK211 DESCRIPTION Nexans develops halogen-free communication cables for higher transmission performances to address emerging applications. FLAMEX® communication cables are conform to EN 45545-2, easy to pool, quick to connect and compatible with standard connectors, and designed to improve the protection against electrical disturbances, electromagnetic noises. Nexans experience in the design of shielding technology enables us to propose all constructions with high EMC protection. All these features make FLAMEX® cables the best candidate for new built and retrofifit works. Communication Cables CHARACTERISTICS Construction characteristics Type of cable CAT 5E Construction type 4 x 0.50² Sheath colour Blue Core identifification C Halogen free EN 50267-2-1 & EN 60684-2 Outer sheath EPR Dimensional characteristics Nominal outer diameter 8.5 mm Approximate weight 96 kg/km Usage characteristics Flame retardant EN 45545-2 (HL3) Gases toxicity EN 45545-2 (HL3) Smoke density EN 45545-2 (HL3) Minimum operating temperature -25 °C Electro magnetic interference resistance Yes Fire resistant - Fire retardant - Fire safety - Flame resistant -

---
