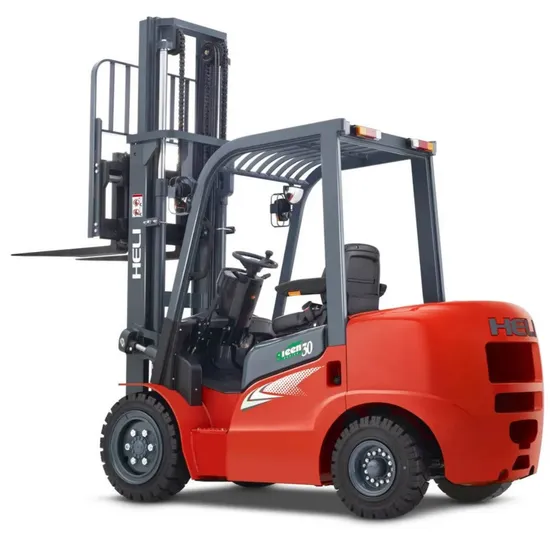

Heli in Stock Cpcd30 3-Ton Diesel Forklift High Quality China Famous Brand

Product Description

Product Description The CPCD30 forklift truck is a powerful diesel-powered forklift truck that is widely used for loading and unloading operations in industries such as construction, logging, mining, distribution, warehouses, forwarding companies, etc. It is ideal for working outdoors and is resistant to dirt. The low noise and exhaust emissions make the forklift truck environmentally friendly. Working comfort is enhanced by the ergonomic design, increased working space and smart layout. Maintenance is easy, which extends the service life of the forklift.
Detailed Photos
Product Parameters

Model			CPCD30
Power type			Diesel
Rated capacity		Kg	3000
Load center		mm	500
Max. Lift height		mm	2065
Max. Fork lift height(with backrest)		mm	4262
Free lift height		mm	160
Fork size(L3xWxH)		mm	1070×125×45
Mast tilting angle		°	6/12
Front/Rear overhang		mm	479/495
Min. Ground clearance		mm	135
Overall	Length to face of forklift	mm	2065
	Overall width	mm	1225
	Overall length(with/without fork)	mm	3752/2682
	Backrest height	mm	1227
	Overhead guard height	mm	2070
	Traction pin height	mm	310
Wheel base		mm	1700
Turning radius(exterior/interior)		mm	2400/200
Min. Right angle aisle width		mm	2380
Speeds	Drive speeds	Km/h	18/19
	Lifting speeds	mm/s	440/480
	Lowering speeds	mm/s	450/500
Max. Drawbar pull		KN	21/16
Max. Grade ability		%	20/20
Total weight		Kg	4270
Tires	Wheel no. X=drive wheel	2X/2
	Front	28*9-15-12PR
	Rear	6.5-10-10PR
	Service brake	Hydraulic foot pedal lever
	Parking brake	Mechanical hand lever
Tread	Front	mm	1000
	Rear	mm	970
Engine	Model	QC490GP
	Rated output	Kw/rpm	39/2650
	Rated torque	N. M/rpm	162/1950
	No. Of cylinder		4
	Displacement	L	2.54
Fuel tank capacity		L	60

Company Profile Shanghai Weide is the top professional equipment solution provider of construction machinery in Shanghai, China. With the first heart and pursuit of ten years, adhering to the customer-oriented. Dedicated enthusiasm to provide users with the best service, and strive to provide the world with high-quality Chinese Construction Machinery.The company is now a global enterprise possessing 10 major categories and 56 product lines, as well as nearly 600 leading products.

---
