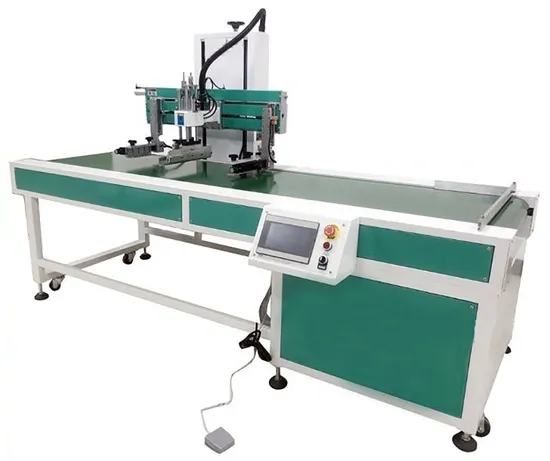

Automatic Vacuum Suction Conveyor Belt Flat Screen Printing Machine

Product Description

Semi Automatic Vacuum Suction Conveyor Belt Flat Printing Line Flat Screen Printing Machine
Basic Configuration:
2500mm conveyor belt worktable, 600mm AirTAC cylinder, 300*500MM large printing size; automatic operation at regular intervals, saving labor, can be connected to a drying line, and can be equipped with drying equipment; with vacuum suction device;
Scope Of Application:
all kinds of cartons, bags, non-woven bags and other sheet products;
Machine Features:
1. This is a simple screen printing machine with high integration IC chip control. The operating panel is clear and simple, easy to operate. After several years of continuous revision of the IC board, has been very mature, the pass rate could reach 99%, almost no any problems. Control panel with fault display alarm function, as long as the equipment line has problems, the control panel will show that part of the problem, can be quickly troubleshooting, easy maintenance. 2. The small screen printing machine using four-digit digital tube count display, each printing, automatic count once, can be a good display of the current output. It has the function of clearing zero. 3. Conveyor belt operating structure, timing automatic printing, adjustable speed; can be connected to the drying trunk, or directly in the conveyor belt to add drying equipment 4. A double-column lifting structure with smooth movement up and down. 5. The utility model relates to the utility model relates to knife, which is convenient, time-saving and labor-saving, and the function of lifting knife is mainly convenient to install, disassemble the screen plate, and at the same time, it is convenient to wash the screen. Unconvenient disassembly and washing will also affect the stability of the equipment. 6. Printing stroke can be adjusted; this machine can adjust the stroke control switch to adapt to different printing length, can also adapt to different screen size, so that can be large screen version, can also use small screen version; can print small area products, You can also print large areas of products (no more than equipment printing range) 7. Printing squeegee and ink-return knife can adjust different angles according to different printing requirements. 8. Stainless steel table front & back, left & right fine-tuning; mesh clip can also be fine-tuned front & back, easy to match the screen. 9. Three printing modes can be selected; semi-automatic, manual, automatic; semi-automatic working mode for one printing, manual can adjust the upper and lower left and right scraper switch, automatic can set a certain time interval to achieve uninterrupted printing 10. Equipment with emergency brake design, in case of emergency, can directly press the emergency switch on the workbench, or immediately press the foot switch once, the equipment will return to the original rising state; reliable
Major Components:
Printing cylinder: AirTAC
Lifting Cylinder: AirTAC
Solenoid valve: AirTAC
Touch Screen: Weilun
Ink Return Knife Material: Aluminum
Lifting Mode: Long and Short Dual Mode
Left & Right Limit: Hydraulic Buffer
Left & Right Electric Eye: Photoelectric Electric Eye
Up & Down Electric Eye: Magnetic Electric Eye
Machine Parameters:
Model: ZT-3050CV-YC
Maximum Printing Size: 300mm*500mm (H 80mm)
Printing Speed: 1000~1500P/H
Maximum Screen Frame Size: 500mm*800mm
Conveyor Belt Size: W 600mm * L 2500mm
Squeegee Specification: 50mm*9mm
Machine Size: 2500mm*850mm*1600mm
Machine Weight: 240KG
Packing Size: 2600mm*950mm*1800mm / 4.45CBM / 300KGS
Power Supply: 110V~220V, 50W, 50HZ/60HZ
Air Source Requirements: 5-7Bar

---
