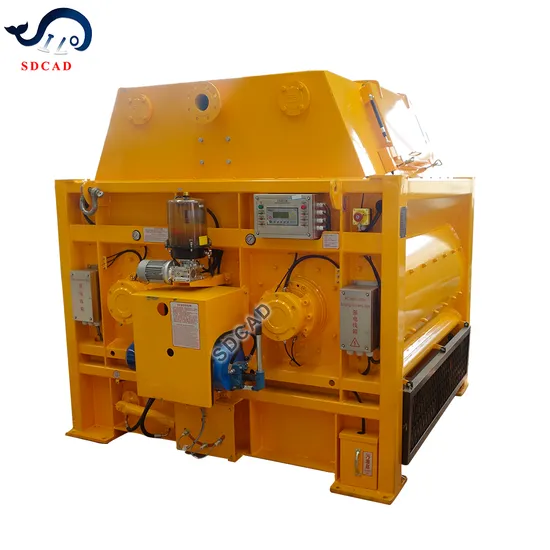

Js 500 - Js 3000 Twin Shaft Concrete Mixer Ideal for Use in The Ready Mix Industry

Product Description

Product Overview Twin shaft concrete mixer
Twin shaft mixer Achieving the desired homogeneity and workability of modern mixtures, within the shortest period possible, is often the most critical phase of production. SDCADI offers an extensive range of high performance mixers - Single-Shaft, Twin-Shaft, Planetary or Pan with variety of different capacities, ensuring we comply with every mixing requirement. SDCADI Twin-Shaft mixers have proven to be reliable and built to the highest quality, resulting in SDCADI equipment being the choice of many
professionals, in over 70 countries around the world. Our Advantage
Customized service:Unique top opening design.Position and size of the feeding inlet according to the customer's needs.
Capacity :500L ~4000L.
♦ Equipped with multi stages shaft seals.
♦ Equipped with manual lubrication pump.
♦ Watering curtain at top cover to ensure fast and thorough mixing.
♦ Optional automatic lubrication pump DC24V.

Full Process Solution Provider of SDCADI
PRODUCT CONFIGURATION
Efficient powertrain good efficiency and speeds of 0-45 rpm favour the speedoptimised mixing process and thus optimum energy input into the mix. Excellent mixing results can be realized in a short period. Independent hydraulic circuits ensure maximum operational safety and a long lifetime. One for the mechanics and one for the lubrication and for the cooling of the gearbox. Maintenance activities can be conducted quickly due to the clearly arranged service positions on the drive side. This results in a high availability of the mixer.
Basic parameters

Item	Technical data
Model	JS1500
Filling volume(L)	2400
Compacted concrete(L)	1500
External dimensions(L*W*H)mm	2900*3000*2150
Transportation dimensions (L*W*H)mm	2900*2320*2150
Weight(kg)	6500

Detailed parameters

Item	Technical data
Production capacity (m3/h)	90
Mixing axle rotation speed (r/min )	26.75
Capacity	90m3/h
Automatic Lubrication oil pump Nameplate	motor power is0.09kw

Highlights
Consistently high mixture homogeneity and short mixing cycles
•Rapid increase in mixture homogeneity through intensive material exchange
•Uniform consistency and homogeneity in every mixing cycle
Optimum energy efficiency
•Preservation of the grain structure of the formulation's individual components
•Low specific energy consumption due to short mixing times, optimized mixing mechanism and efficient drive. Design results in low wear
• Low wear on mixing tools and mixing trough lining due to low speeds and compact design
• Significantly less wear and tear than with pan or planetary mixers • Optimized design of all parts subject to wear
Efficient production of concrete
• Excellent liberation of binders in a short time
• Creates potential for reducing the required amount of binder
• Uniform and fast distribution of additives and admixtures across the entire volume of the mixture
• Possibility of small batches as low as 10% of the nominal filling level
Electric lubricating oil pump Reducer Shaft-end sealling
Hydraulic discharging system Robust mixing tool with wear tiles Hydraulic mixer gate
PRODUCT SPECIFICATIONS

Model	JS 750	JS 1250	JS 1500	JS 2000	JS 3000	JS 4000
Charging capacity(L)	1200	2000	2400	3200	4800	6400
Discharging capacity(L)	750	1250	1500	2000	3000	4000
Production capacity(m3/h)	42	75	90	120	180	240
Mixing axle rotation speed(r/min)	29.9	29.67	26.75	23.5	23.4	22.85
Mixer motor power(kw)	2*15	2*22	2*30	2*37	2*55	2*75
Librication oil pump motor power(kw)	0.09	0.09	0.09	0.09	0.09	0.09
Hydraulic system motor power(kw)	2.2	2.2	2.2	2.2	2.2	2.2

Electromagnetism valve power supply(V)	DC24	DC24	DC24	DC24	DC24	DC24
Mixing time(s)	<=40	<=40	<=40	<=40	<=45	<=45
No. of mixing arm	12	12	16	16	18	22
Max diameter of aggregate(Detritus/ Pebble)	60/80	60/80	60/80	80/120	100/150	100/150
Transportation dimensions(LxWxH)	2900x 2100x 2100	3000x 2100x 2100	2900 2320x 2150	3450x 2320x 2250	3900x 2600x 2230	4500x 2600x 2230
Entire machine weight(kg)	5000	5300	6500	7500	9300	11800

Spare parts list

No	Name	Unit	Model
1	Liner	1	JS1500
2	Half liner	1	JS1500
3	End liner (inner circle)	1	JS1500
4	End liner (outer circle)	1	JS1500
5	End liner (five sides)	1	JS1500
6	Intermediate mixing arm	1	JS1500
7	Intermediate mixing arm clamp	1	JS1500
8	End arm	1	JS1500
9	End arm clamp	1	JS1500
10	blade	1	JS1500
11	Scraper (large)	1	JS1500
12	Scraper (small)	1	JS1500

Advantage of the three-dimensional mixing concept In contrast to the circular motion of other mixing systems, the three-dimensional mixing principle of the twin-shaft batch mixer produces a more intensive exchange of material, which leads to shorter mixing times while consuming less energy.
Mixing principle
* Generation of a circular three-dimensional movement pattern of the entire mixture
* Intensive material exchange in the turbulent overlap zone of the two mixing circuits
* Optimal conversion of the energy input into intensive relative movements of the mixture
* Total volume of material is always included in the mixing process
Packaging and Transportation
Successful Project
SALES AND SERVICE NETWORKSIMILAR PRODUCTS
FAQ
Are you a manufacturer or Trader?
We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
What is your payment term?
We accept T/T, L/C at sight, Western Union, Paypal etc.
How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the
deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depend on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with
differentbudgets. How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate.Also provide a manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
What is your MOQ?
