Glorystar New Technology CNC Pipe Cutting Machines GS-6022tg

Product Description

GLORYSTAR New Technology CNC Pipe Cutting Machines GS-6022TG
>>> Advantages
1.Automatic loading material device: To increase the working efficiency and reduce workforce cost.
2.With double automatic chucking, it is convenient to clamp the pipes and the clamping force is adjustable according to the pipe wall thickness.
3.The long roller allows for clamping angle iron, H beam, U beam steel, and other open type pipe.
4.With automatic edge finding and centering functions, good cutting quality for shaped materials is ensured.
>>> Product Introduction

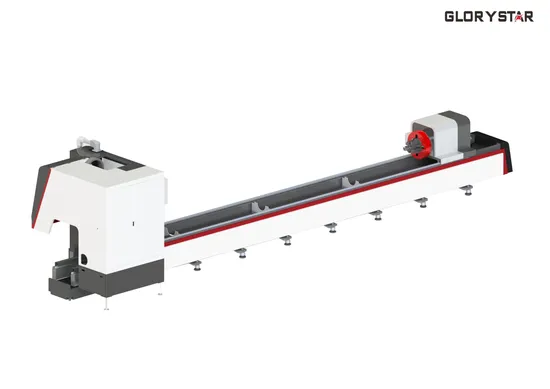

GS-TG is the professional pipe & tube cutting machine. It is suitable for all tubes, pipes and shaped-tubes, including round tube, square pipe, oval tube, angle iron, channel beams, H beams, T beams and other irregularly shaped tubes. Compared with traditional tube cutting machine, it can increase the working efficiency and reduce the procedures of manual operations by optional functions automatic loading.
>>> Technical parameters

Model	GS-6012TG	GS-6022TG	GS-6034TG
Processing format (L/W)	6000mm x φ120-20mm 6000mm x 120-20mm Standard profiles with a circumcircle <φ120mm	6000mm x φ220-20mm 6000mm x £220mm-20mm Standard profiles with a circumcircle <φ120mm	6000mm x φ340-20mm 6000mm x 240mm-20mm Standard profiles with a circumcircle <φ120mm
X-axis stroke	500mm	500mm	500mm
Y-axis stroke	7000mm	7000mm	7000mm
Z-axis stroke	400mm	400mm	400mm
W-axis	Infinite rotation (133RPM)	Infinite rotation (100RPM)	Infinite rotation (100RPM)
Max. X/Y axis positioning speed	80m/min	60m/min	60m/min
Max. X/Y axis acceleration	1.0G	0.5G	0.3G
X/Y axis geometric positioning accuracy	≤0.1mm (full range)	≤0.05mm (full range)	≤0.05mm (full range)
X/Y axis repeated positioning accuracy	≤0.05mm	≤0.03mm	≤0.03mm
Max. Tube weight	20Kg/M	20Kg/M	20Kg/M
Machine size (L x W x H )	10380mmx2000mmx2500mm	10380mmx2000mmx2500mm	10380mmx2000mmx2500mm

>>> Application
1. Application Industries: Widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
2. Application Materials: Suitable for metal cutting with Stainless Steel Sheet, Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Iron Plate, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Metal Sheet,Metal Plate, Tubes and Pipes, etc.
>>> Sample
>>> Quality Control and R&D
>>> After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of parts.
Accessories supply
IPG laser source is 2 years. Other parts is one year except for optical and consumable parts. Prolong serve is always available for option. Free of charge for fixing and changing parts within warranty. Only changing parts , the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback
Welcome inquiry, our business staff will provide you with warm service

---
