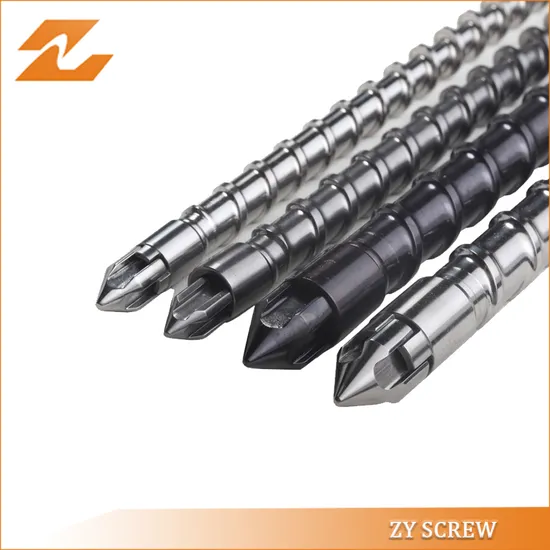

Injection Screw Barrel for Injection Molding Machinery

Product Description

Injection Screw Barrel,Injection Molding Machine screw barrel,bimetallic screw barrel, plastic machinery screw barrel
Specification:
Screw diameter: Φ 20mm-Φ 220mm
Mould clamping force: 250T-3200T
Shot weight: 30G-30000G
Base Materials:
1). 38CrMoAlA(JIS SACM645).
2). 42CrMo(AISI 4140).
3). 4Cr5MoSi V1 (JIS SKD-61).
4). 9Cr18MOV
5). HPT
Bimetallic alloy materials:
1). Fe-based alloy
2). Ni-based alloy/Deloro alloy
3). Co-based alloy
4). NiCo-based alloy
5). Tungsten carbide/Wolfram carbide
Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: >=950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm
Warranty and service: 1 year
About ZY:
1. Rich strength----We have our own professional teams in the sales, design, production, inspection and customer service areas. We concentrate to bring customers the most perfect customer experiences.
2. High-quality products----We adopt a series of advanced production and processing equipments such as CNC machines, Stellite PTA welding machines to ensure the quality of our products.
3. Large international market----We do foreign trade more than 5 years, we have a set of mature foreign trade system, our customers are all over the world. We will continue to expand our international market.
4. Location advantage----We are located in China's screw town----Jintang town, Zhoushan city, near to Ningbo Port and Shanghai Port.
5. Serious and responsible attitude----Over the years, we always maintain a serious, professional and responsible attitude, make our best efforts to meet customers' demands.
Welcome to contact us~!

Main Base materials	1.38CrMoAlA (Nitriding Steel)
	2. SKD-61 (Special Tool Steel)
	3. 42CrMo (Ultrahigh Strength Steel)
	4. DC53 ( Cold Work Die Steel)
	5. W6Mo5Cr4V2 ( High-Speed Tool Steel )
	6. HPT
Main Alloy Materials	1. Ni-based alloy/Deloro alloy
	2. Tungsten carbide/Wolfram carbide
	3. NiCo-based alloy
	4. Fe-based alloy
	5. Co-based alloy
Processing Technics	1. Heat treatment
	2. Quenching
	3. Nitriding treatment
	4. Bimetallic alloy welding
	5. Bimetallic alloy centrifugal casting
	6. Hard-chrome electroplating
Technical parameters	Nitriding layer depth	0.5-0.8mm
	Nitrided hardness	HRC56-58
	Nitrided brittleness	Less than grade 1
	Surface roughness	Ra 0.4
	Linearity of screw	0.015mm
	Hard-chrome plating hardness	≥HRC57
	Chrome-plating layer depth	0.03-0.09mm
	Bimetallic layer depth	3 mm
	Bimetallic layer hardness	HRC58-62
Above are main technical information, a suitable screw and barrel will be made according to your requirement.

---
