Kyw 2015 Hot Sale Low Price Horizontal Centrifugal Pump

Product Description

KYW 2015 Hot Sale Low Price Horizontal Centrifugal Pump
KYW 2015 Hot Sale Low Price Horizontal Centrifugal Pump are high-effective energy-saving products, which are successfully designed by ways of adopting the property data of worldwide centrifugal pumps and the unique advantages of vertical pumps, it is strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93. This Hydraulic pump develops into hot water pump (KYWR/KYLR), chemical engineering pump (KYHL), oil pump (KYYG) and ex proof chemical pump (KYHY) according to different medium.


>>> Performance range of KYW 2015 Hot Sale Low Price Horizontal Centrifugal Pump
capacity:4-1200m3/h head:8-150m speed:2900, 1450r/min power:0.75-250kW flange:25-350mm medium temp.:≤80ºC

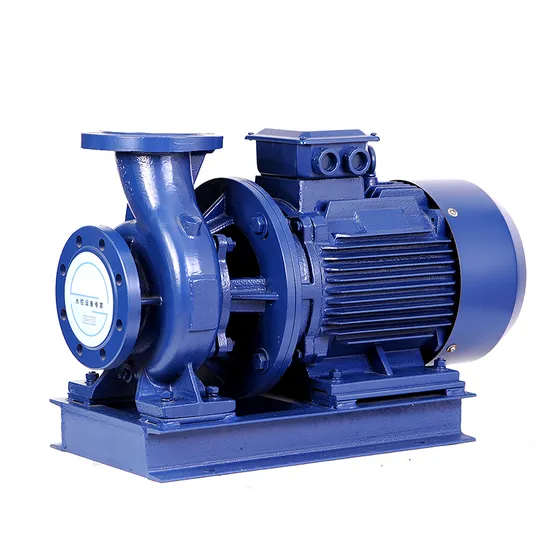

>>> Photos Of KYW 2015 Hot Sale Low Price Horizontal Centrifugal Pump



>>> Applications of KYW 2015 Hot Sale Low Price Horizontal Centrifugal Pump
KYL (KYW) series vertical Centrifugal Water Pressure Pump is used to deliver clear water and other liquids similar to water in physical properties for industrial and cities water supply and drainage, high buildings booster water supply, garden irrigation, fire-fighting booster, remote water supply, warming systems, cycle booster of cold and hot water in bath rooms as well as for industrial equipments. The medium temperature should be lower than 80ºC. KYLR (KYWR) series vertical hot water Centrifugal Water Pressure Pump is used for the hot water booster cycle systems and the heat transport systems in heat-stations, residual heat utilization, metallurgy, chemistry, tactile, wood-processing, paper-making, industrial boilers. The medium temperature is lower than 120ºC. KYHL (KYHW) series vertical chemical pumps is used to transport the corrosive liquids containing no solid particle. The viscosity of liquid is similar to water. It can be used in light and textile industries, petroleum, chemical industries, metallurgy, electricity, paper-making, food, medicine and synthetic fiber industries etc. The working temperature is from 20ºC to120ºC. YG series vertical non explosive oil pumps is used to transport non-corrosive, inflammable, non explosive liquids for light, textile and mechanical industries etc. The medium temperature is from 20ºC to 120ºC and the density should be less than 1000kg/m3.
>>> Technical Parameters of KYW 2015 Hot Sale Low Price Horizontal Centrifugal Pump
>>> Model Meaning Of KYW Water Pressure Pump
KYL(KYW)65-160(I)(A/B)
KYL: Single Stage, Single Suction, Vertical Inline Pump KYW: Single Stage, Single Suction, Horizontal Pump KYLR: Single Stage, Single Suction, Vertical Hot Water Pump KYHL: Single Stage, Single Suction, Vertical Chemical Pump KYHW: Single Stage, Single Suction, Horizontal Chemical Pump YG: Single Stage, Single Suction, Oil Pump 65: Inlet & Outlet Diameter (mm) 160: Outer Diameter Of Impeller (I): Flow Classification A: First Impeller Cut B: Second Impeller Cut

---
