4sp High Pressure Winding Pipe Series Hydraulic Hose

US$1.14

500-4,999 Meters

US$1.10

5,000-49,999 Meters

US$1.00

50,000+ Meters

Basic Info.

Model NO.

4SP

Color

Black

Dash

4-32

6.3-51

Inch

1/4-2

I.D

6.4-51.4

O.D

17.1-69.6

Max W.P

50-17.5 MPa

Min B.P

200-70 MPa

Min B.R

150-660 mm

Transport Package

Wooden Box or Carton

Specification

6.3-51mm

Trademark

ARGUS

Origin

China

HS Code

4009210000

Production Capacity

1000000 M /Year

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 20.00cm

Package Gross Weight

2.000kg

Product Description

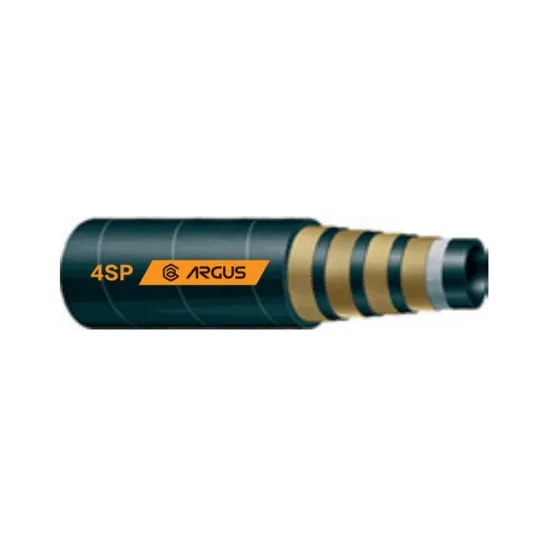

Product Description4SP is a high-pressure hydraulic hose commonly used in industrial applications 4SP hydraulic hose is made of four high-strength spiral steel wires tightly wound to provide maximum strength and durability. The inner layer of the hose is made of oil-resistant synthetic rubber. The reinforcement layer consists of four layers of high-strength steel wire wraps and the outer layer of the hose consists of high-temperature, ozone, and abrasion-resistant synthetic rubber. The hose has an operating temperature of -40°C to 100°C. The hose has a maximum working pressure of 7,250 psi, providing enough power to handle heavy-duty hydraulic applications. Widely used in high hydraulic systems.

Type	Hose Size			1.D		0.D		Max W.P		Min B.P		Min B.R	WT
Type	Dash	mm	inch	Min	Max	Min	Max	MPa	Psi	MPa	Psi	mm	kg/m
4SP-04	-4	6.3	1/4	6.4	6.8	17.1	18.1	50.0	7250	200.0	29000	150	0.62
4SP-05	-5	8	5/16	8.0	8.5	18.3	19.3	46.0	6670	184.0	26680	170	0.66
4SP-06	-6	10	3/8	9.5	10.0	20.6	21.6	46.0	6670	184.0	26680	180	0.81
4SP-08	-8	12.5	1/2	12.8	13.4	23.8	24.8	42.5	6163	170.0	24650	230	0.95
4SP-10	-10	16	5/8	15.8	16.4	27.4	28.4	40.0	5800	160.0	23200	250	1.25
4SP-12	-12	19	3/4	18.8	19.4	31.4	32.4	38.0	5510	152.0	22040	300	1.53
4SP-16	-16	25	1	25.4	26.0	38.5	39.5	32.0	4640	128.0	18560	340	2.15
4SP-20	-20	31.5	1-1/4	31.8	32.5	49.2	50.4	21.0	3045	84.0	12180	460	3.12
4SP-24	-24	38	1-1/2	38.0	38.6	55.6	56.8	18.5	2680	74.0	10730	560	3.62
4SP-32	-32	51	2	50.6	51.4	68.2	69.6	17.5	2538	70.0	10150	660	5.17

Detailed Photos
