Cheap Injection Molding Machine with Stable Performance

Product Description

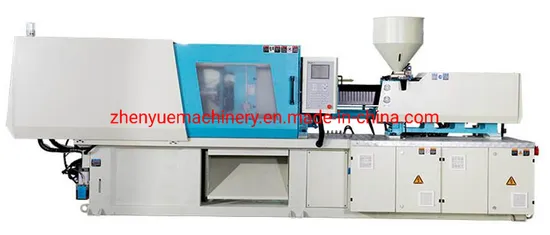

Standard Injection Molding Machine ALS-180

1, Product Introduction of Standard Injection Molding Machine ALS-180
The injection molding machine enjoy good reflection from the customers, and own the advantages as follows,
1) Precision: optimized mechanical structure with famous brand controller, greatly increase machine precise.
2) Stable: dual cylinder injection, perform stability and reliability.
3) Durable: platen with DFA design helps to strengthen the rigid
4) Energy Saving: comparing with traditional fixed pump or variable pump machine, it saves electricity obviously.
2, Standard Injection Molding Machine ALS-180 Product Parameter (Specification)

ALS-180
INJECTION UNIT
SCREW DIAMETER	mm	45
SCREW L/D RATIO	-	20.6
THEORETICAL SHOT VOLUME	cm^3	395
INJECTION WEIGHT (PS)	g	358
INJECTION PRESSURE	Mpa	160
INJECTION RATE	g/s	168
MAX. SCREW SPEED	rpm	0-220
INJECTION STROKE	mm	248
C LAMPING UNIT
CLAMPING FORCE	T	180
TOGGLE STROKE	mm	460
SPACE BETWEEN TIE BARS	mm	520*470
MAX. MOLD THICKENSS	mm	550
MIN. MOLD THICKENSS	mm	200
EJECTOR STROKE	mm	140
EJECTOR FORCE	KN	50
EJECTOR NUMBER	PCS	5
OTHERS
HYDRAULIC SYSTEM PRESSURE	Mpa	17.5
PUMP MOTOR	Kw	23
HEATING CAPACITY	Kw	12.3
MACHINE DIMENSION (L*W*H)	m	5.2*1.45*2.1
THEORETICAL MACHINE WEIGHT	T	5.8

3, Standard Injection Molding Machine ALS-180 Product Feature And Application

4, standard Injection Molding Machine ALS-180 Product Detail
1) High torque oil motor pre-plasticizing drive
2) Five fulcrum and double bent axle locking mould
3) Oil motor drive gear adjusting mould
4) automatic lubrication system
5) Pressure, flow precision running
6) High quality oil pump
7) Injection many stages pressure, speed adjusting
8) Chinese and English computer controlling
9) Mould group data memory function

5, Quality Qualification
The equipment according to the enterprise standard implementation. And the enterprise owns rich experience in field of plastic injection molding machine.


6, Technical and After-sales Service
The supplier the following technical and after-sales service commitment
1) English Technical files provided.
2) Machine tested before the delivery.
3) Technical support online service provided.
4) Consumable parts at reasonable price when replaced.
5) spare parts provided with each new machine

7, FAQ
1) Delivery time: within 7 days if in stock. It is subject to confirmation.
2) Packing: simple package
3) Trade Term: FOB, CFR, CIF, ect. It is subject to confirmation.
4) Default power system: 380V, 50Hz, 3Phase


8, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Product: Plastic Injection Molding Machine
9, Remark:
All the information (including words, photos, specification, figures, design) above are only for reference. It is subject to confirmation. The company reserves the right to revise all information (including words, photos, specification, figures, design) above.

---
