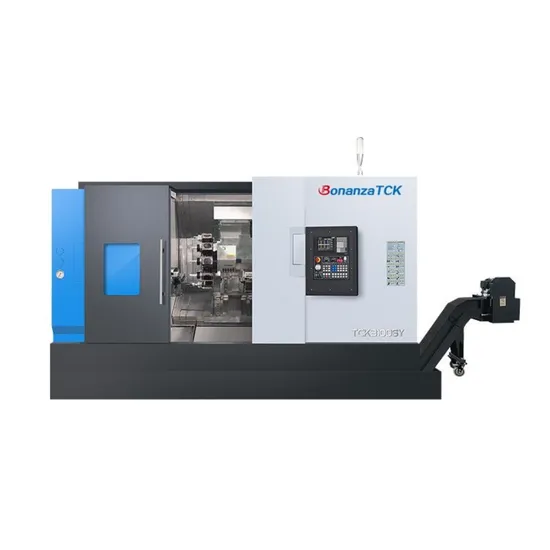

Dual Electric Spindle Turning and Milling Tck3100sy Suitable for Double-Sided Processing

Product Description

Dual Electric Spindle Turning and Milling Tck3100sy Suitable for Double-sided Processing
Product Description





1. Doushan Same Style Interpolation Y Structure
2. Customized large cutterhead BMT65 power turret, 7.5KW power motor
3. Dynamic docking accuracy 5 μ
4. Dynamic mirror programming function, program one piece of mirror image to the secondary spindle for the first spindle
5. The first spindle A2-8, 37kW, and the secondary spindle A2-6, 30kW are all high torque electric spindles with high accuracy and constant torque at low speeds.

Product Parameters

Project			Units	Specifications		Remarks
Maximum turning diameter on bed			mm	750
Maximum cutting length			mm	1000
Maximum cutting diameter			mm	500
Standard cutting diameter			mm	380
Maximum turning diameter on a skateboard			mm	400
Spindle end type and code				A2-8		Motorized spindle
Main shaft hole diameter			mm	85
Max over bar diameter			mm	75
Headstock	Maximum spindle speed		r/min	3000
	Spindle torque rating		Nm	283
	Spindle speed series			Stepless speed change
	Main motor output power		kW	37
Chuck	Chuck diameter/type		inch	10"/8"		Select 12 ''/10 ''
				10 "(optional)
X-axis fast shift speed			m/min	12
Z-axis fast shift speed			m/min	16
Y-axis fast shift speed			m/min	12
X-axis stroke			mm	400
Z-axis stroke			mm	1350
Y-axis stroke			mm	-1
Standard tool holder form			BMT65	Horizontal 12 station power cutter tower
30 ° rotary tool change time			S	0.1
Tailseat stroke			mm	950
Tailstock spindle cone hole taper			Mohs	5# Top

Detailed Photos

Machine structure 1.Integrated casting bed body, resistant to tension and earthquake resistance. 2.45 ° inclined bed for more convenient chip removal.

Servo Turret 1. Standard: Horizontal 12''inch servo turret 2. Optional: Live turret

Electric spindle spindle box 1,Has better dynamic accuracy and stability 2,High precision, long life and high efficiency

Hydraulic tailstock 1. Standard with hydraulic tailstock 2. Can choose Programmable tailstock driven by servo motor

Company Profile



Certifications


Packaging & Shipping


FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.

---
