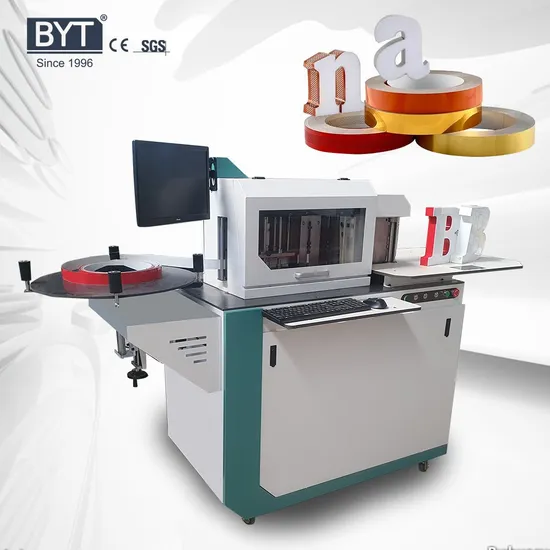

Large Advertising Signs 3D Letter Channel Bending Machinery

Product Description

Product Description Shop Signage Illuminated Characters Flat and Folding Aluminum Channel Letter Bending Machine
Application: The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials aluminum profiles, aluminum strip ) and does not damage the material.The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software,more convenient and quickly.

Channel letter bending machine parameter
Model	BWZ-B1
Working Principle	High precision automatic feeding,trimming,notching and bending
Material Width	Flat Alu:≤180mm; Flolding Alu:≤160mm; Channlume:70,90,110mm
Metarial Thickness	0.3~1.5mm
Bending Radius	7mm
Feeding	36mm feeding wheel+guide material auxiliary+encoder
Slotting system	motor control
Bending	coupled extrusion-double copper shaft flat arc bender
Control system	ADT system
Power	<1500W
Air pressure	0.6MPa
File format	DXF, AI, PLT
Working voltage	220V/ 50-60HZ/1P
Net weight	270kg
Overall Size	2100*800*1770mm

Detailed Photos
Whole machine advantage:
1.Whole machine guarantee 2 years , the motor guarantee 3 years 2.Processing material height 10-180mm, Thickness : 0.3-1.5mm.
3.All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.1Using the most advanced ADT operating software, easy to learn, usually only after 1-2 hours of training by our engineers ,customers can operate and use independently. 4.2.The software have Length closed-loop control system ,the length precision ≤0.1mm.
Feeding:
The feeding roller diameter 36mm and install encoder, ensure the feeding precision and speed.
Notching:
The stability, practicability and accuracy of cutting are guaranteed by the following structure.
20mm Taiwan guide rail Motor lifting control cut not cylinder
More stable four-column design Automatic adjust cutting depth
Bending:
Double cooper shaft flat arc bending device,small radian beat and large radian extrusion molding ,processing speed fast and don't damage the material ,finish 80-100 M2/day.

Product Samples
Customer feedback
Company Profile 1. Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".
2. Own more than 30 patents for invention, utility model and design.
3. Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4. Exported to over 150 countries including the North America, Europe, South America, the Middle East,and have more than 2000 clients.
5. Provide one-stop procurement ,let customer's purchase more efficient and safety.
6. According the customer different requirements ,provide equipment customized solved plan and sample making .
FAQ 1. What is Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and light boxes
2. How to choose a suitable Letter bending machine?
1) According to local needs,which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose aluminum letter bending machine More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine ,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
5.What is the type of shipping and producing time ?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like . When you pay for the deposit , We will arrange producing which about 7-15days delivery .

---
