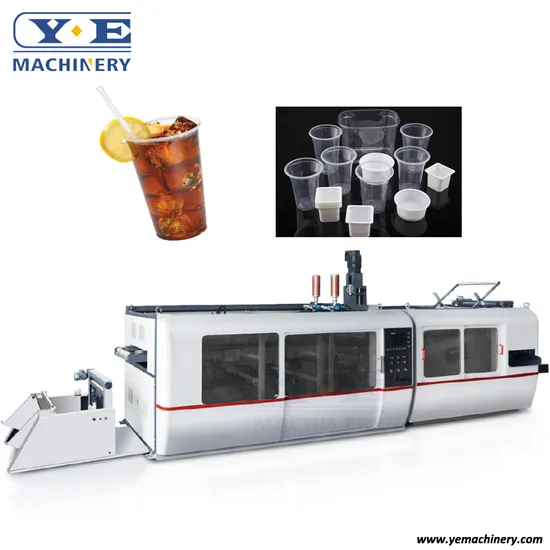

Automatic PLA PP Pet Tilt Mold Plastic Cup Thermoforming Making Machine

Product Description

Use: It is an ideal equipment to form PLA PP,PS,HIPS,PVC,PET plastic sheets,which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as disposable cups, ice-cream cups, milk cups, chocolate boxes, candy boxes and fast-food boxes etc.
Features:
Tilt-mold Thermoforming Machine is a combination of mechanical, electrical and pneumatic components. With the 6 cam-controlled toggle lever system ensures high forming and punching forces. The machine has man-machine interface, sending sheet by chain, cutting by mould knives, and overturned mould can stack products automatically. The whole system is controlled by PLC, combining the preheating, material feeding, heating, drawing, forming, cutting and stacking into one unit.
Main Parameters:

Model	TF70-A	TF70-B
Maximum forming area	320*720mm	450*720mm
Maximum forming depth	140mm (available to customize 180mm)	140mm (available to customize 180mm)
Maximum width of sheet	700mm	700mm
Thickness range of sheet	0.3-2mm	0.3-2mm
Maximum sheet roller diameter	1100mm	1100mm
Running Speed	28-35(cycles/min)	28-35(cycles/min)
Machine speed	40 (cycles/min)	40 (cycles/min)
Air pressure	0.7Mpa	0.7Mpa
Air consumption	2000 (Liters/min)	2000 (Liters/min)
Water consumption	15 (Liters/min)	15 (Liters/min)
Heating power	100 Kw	100 Kw
Main engine servo power with drive	11 Kw, Schneider	15 Kw, Schneider
Rewinding motor power	0.55Kw	0.55Kw
Power	3x380V+N+PE(±10%)50Hz	3x380V+N+PE(±10%)50Hz
Size of Machine	8500mm*2300mm*2650mm (L×W×H)	8500mm*2300mm*2650mm (L×W×H)
Weight	9000kgs	9000kgs

Plastic thermoforming machine details:
Low noise and fast cup picking up system (Stable running speed 34cycles/min):
PLA PP PET can be produced on the tilt mold cup making machine:
On Professional plastic Fairs and exhibitions:
Shipment for tilt mold cup thermoforming machines:

---
