Product Description
Product Description

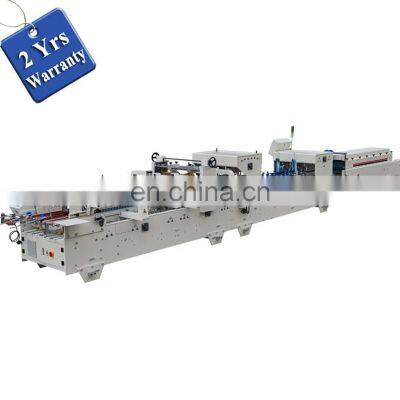

GDFG900 Auto E F flute corrugated paper box Crash Lock Bottom Folder and Gluer, cosmetics medicine box gluing folding machineVideosVideo demonstration only for reference Video 01: https://www.youtube.com/watch?v=lyxyBuzYu80Video 02: https://www.youtube.com/watch?v=68ZDQrX55Uk Products ParameterFeatures:UFG-900GD is a kind of new advanced pre-fold and lock-bottom high speed automatic folder and gluer. In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree and 150 degree. The second fold and the fourth fold can be molded in 180 degree. This machine is widely used to produce various types of crash lock bottom boxes, medicine boxes, cosmetic boxes and wine boxes etc. Parameters:ModelGDFG900Paper MaterialCardboard 200-800g E-flute/F-flute Max. Liner speedMax. 280 m/minuteFeeding wayAutomatically and continuously feedingFolding waysFold 1 and fold 3 are 180° and 135°Fold 2 and fold 4 are 180°Bottom folded and glued Glue MaterialWater-base cold glueElectric power7.5KW 380V 3PHWeight3550KGOver dimension12500mmx1400mmx1350mm Box specification:Lock bottom carton type and folded box size: ModelGDFG900Paper TypeCardboardE/F CorrugatedA150-600mm150-600mmB200-850mm200-850mmCMin:30mmMin:30mmDMin:70mmMin:70mmEMin:30mmMin:30mmFMin:80mmMin:80mm Lock bottom carton type and folded box size ModelGDFG900 Paper TypeCardboardE/F CorrugatedA150-700mm150-700mmB120-850mm180-850mmCMin:10mmMin:10mmDMin:70mmMin:80mmFMin:80mmMin:80mm Two-side gluing box type and size: ModelGDFG900A100-550mmB100-800mmC70-600mmD10-200mm Pop corn box type and size (Cold glue spraying gun system is optional) ModelGDFG900A150-600mmB180-850mmC(min)40mmD(min)35mmF(min)20mm French fries box type and size (Cold glue spraying gun system is optional) ModelGDFG900A240-350mmB190-250mmC100-130mmD85-110mm CD box type and size: (CD box device is optional) ModelGDFG900A200-850mmB65-680mmCMin: 12mmDetailed Images Our ServicesPre-sale Service After-sale Service A: Inquiry and consulting support A: English manuel and video instruction B: Sample testing support. B: Your technians can get trained in my factoryC: Invoice and Contract confirmation. C: Engineers available for overseas if necessaryFAQ1.Q: What information should i let you know if i want to get a quotation?A: Detailed size of your finished products in Max and Min?B: Paper thickness in GSMC: Some photos of your finished products2.Q: Are you a manufacturer?A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter. 3.Q: What about the payment term?A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..4.Q: What is the warranty?A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)5.Q: What is your aftersale service?A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..6.Q:What is the delivery time?A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.Pack & ShipWooden Case Loading and Transport Contact UsYOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE. Mobile/Whatsapp/Wechat: +86-18258286679 Email: utecs@ , utecsinter@ , danielsuer@ Skype: danielsuerWeb:
>>
