CNC Metal Profile Bending Machine

Product Description

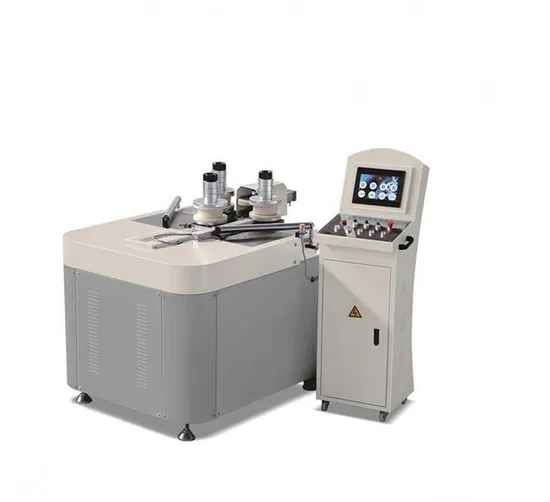

CNC Aluminum Hydraulic Type Rolling Bending Machine
EQUIPMENT FEATURES:
-The machine is mainly used for bending for metal materials such as Iron, copper.and
aluminum and special-shaped material. It's ideal equipment of curved process for furniture manufacturers, wrought iron engineering manufacturers, aluminum alloy doors and Windows manufacturers, decorative steel structure enterprise.
-The machine adopts CNC controller, which make the machine features easy.handling
and high precision
-Using CNC software, makes the bending operation very simple.
-Can bend many shapes such as C shape, U shape, S shape, the whole circle and
spring.
-Capable of detecting material rebound data, eliminate rebound.
MAIN SPECIFICATION and TECHNICAL PARAMETER:

Power supply	380V/50Hz
Input power	5.2KW
Working pressure	0.2MPa
Min.diameter of bending	180mm
Max.width of profile	150x180mm
Max.diameter of rolls	200mm
Lower shaft center-dimensions	350~750mm
Hydraulic cylinder pressure	20T/25T
Roller-holding shaft diameter	60/65mm
Rotation speed of shaf	1~8r/min
Positioning precision	0.01mm
Top roll runout	200/280mm
Torque	2500N.m
Overall dimension	1300x1100x1100mm
Weight	about 1000kg
