US$10,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Output
100-3000kg Per Batch
Application
Granulator or Powder
Transport Package
Export Wooden Case
Production Capacity
30000PCS/Year
Product Description
Product Description

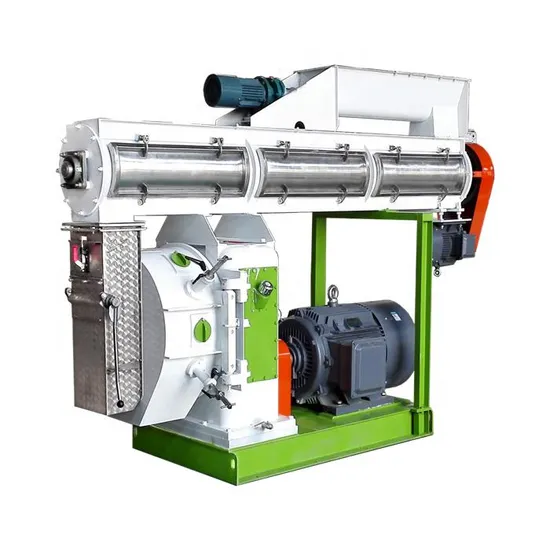

Feeder and conditioning device of the Animal Feed Mill Plant and the feeding chute of the livestock feed pelletizing machine adopt stainless steel material, durable use;
Feeding system of the Small Animal Feed Mill Plant adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements;
Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient;
Security, has a strong magnetic magnet and overload protection device such as a safe and reliable;
Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.
Detailed Photos
Product Parameters
Model
| Main Power
| Feeder Power
| Conditioner Power
| Dia.ofRing Die
| Pellet Size
| Capacity
|
SZLH250
| 22KW
| 0.75KW
| 1.5KW
| 250mm
| 2-12mm
| 1-2T/H
|
SZLH320
| 37KW
| 1.5KW
| 2.2KW
| 320mm
| 2-12mm
| 3-4T/H
|
SZLH350
| 55KW
| 1.5KW
| 3.0KW
| 350mm
| 2-12mm
| 5-7T/H
|
SZLH420
| 110KW
| 1.5KW
| 7.5KW
| 420mm
| 2-12mm
| 8-12T/H
|
SZLH508
| 132/160KW
| 2.2KW
| 11KW
| 508mm
| 2-12mm
| 10-18T/H
|
SZLH558
| 180/200KW
| 2.2KW
| 11KW
| 558mm
| 2-12mm
| 15-25T/H
|
SZLH678
| 220/250KW
| 2.2KW
| 11KW
| 678mm
| 2-12mm
| 20-30T/H
|
SZLH768
| 280/315KW
| 2.2KW
| 11KW
| 768mm
| 2-12mm
| 25-40T/H
|
