Macpex Spider Concrete Placing Boom

Product Description

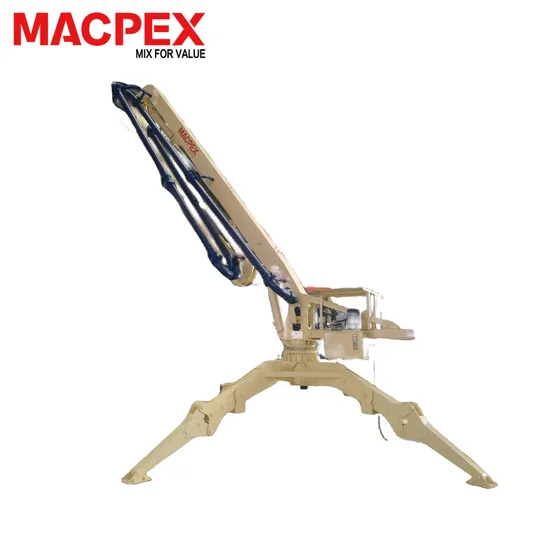

MACPEX Spider Concrete Placing Boom
Experience efficient and precise concrete placement with our versatile and durable hydraulic placing boom. Our advanced spider boom is a reliable and innovative solution for high-quality construction projects. Explore our range of concrete machinery and construction equipment today!

Item	Unit	Models and parameters
Model		MGY13	MG15	MG17	MG18	MG21	MG24	MG28	MG32
Max. placing radius	m	13	15	17	18	21	24	27.45	31.7
Big arm length	m	3.7	6	6.66	7.66	11	12	12.545	14.5
Big arm elevation	-	-2~84.4	0~70	0~65	0~65	0~65	0~65	0~65	0~65
Medium arm length	m	4.52	5	5.73	5.73	6.5	7.5	8.82	9.2
Medium arm elevation	-	0~180	0~180	0~180	0~180	0~180	0~180	0~180	0~180
Small arm length	m	4.78	4	4.61	4.61	3.5	4.5	6.085	8
Small arm elevation	-	0~180	0~180	0~180	0~180	0~180	0~180	0~180	0~180
Hose length	m	3	3	3	3	3	3	3	3
Concrete delivery pipe	mm	ø125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6	ø 125×6
Tail rotary radius	m	2.72	2.81	3.51	3.93	3.9	3.9	3.9	-
Total power	Kw	4	4	5.5	5.5	5.5	5.5	5.5	15
System pressure	Mpa	24	24	24	24	24	24	24	24
Rotary speed	r/min	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8	0.3-0.8
Rotary range	/	0~360	0~360	0~360	0~360	0~360	0~360	0~360	0~360
Mast section	m	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3
Bare machine weight	kg	2500	3000	4800	5200	5900	6500	7000
Balance weight	kg	2×900	2×1100	2200	2×1100	3×2000	3×2000	4×2000	-
Control mode		Panel/ Wireless remote control

Product Detail:
Introducing the MACPEX Spider Concrete Placing Boom by SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. This hydraulic boom is a versatile and reliable solution for efficient and precise concrete placement. With advanced technology and high-quality construction, it is the perfect addition to any concrete batching plant or construction site. Experience durable and innovative concrete machinery with the MACPEX Spider Concrete Placing Boom.
Certificate:
SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. presents the MACPEX Spider Concrete Placing Boom. This hydraulic boom is a versatile and reliable solution for efficient and precise concrete placement. With high-quality and durable construction, it is an advanced and innovative machine for all your construction needs.
MACPEX Spider Concrete Placing Boom
Efficient, high-quality, and versatile concrete placing solution. Our advanced spider boom offers precise and durable construction equipment for all your concrete placement needs. Trust our innovative machinery for reliable results.
MACPEX Spider Concrete Placing Boom
Efficient and versatile, our hydraulic placing boom is the ideal solution for precise and high-quality concrete placement. With advanced technology and durable construction, our boom ensures reliable performance. Explore our innovative concrete machinery today!
MACPEX Spider Concrete Placing Boom
Experience efficient and precise concrete placement with our versatile and reliable hydraulic placing boom. Our advanced spider boom offers high-quality and durable construction equipment for your construction needs. Explore our innovative concrete machinery solutions today!

---
