Product Description
Product Description

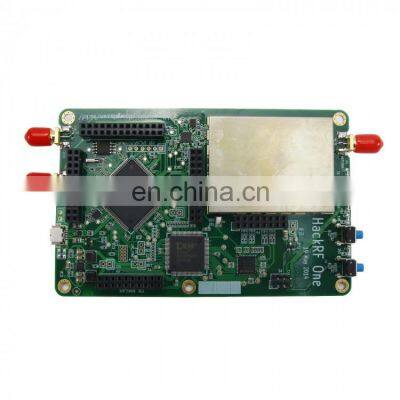

1 MHz to 6 GHz HackRF One Starter HackRF One SDR Board with Shielding Cover Product Description Description:HackRF One is the current hardware platform for the HackRF project. It is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.Features:- Half-duplex transceiver- Operating freq: 1 MHz to 6 GHz- Supported sample rates: 2 Msps to 20 Msps (quadrature)- Resolution: 8 bits- Interface: High Speed USB (with USB Micro-B connector)- Power supply: USB bus power- Software-controlled antenna port power (max 50 mA at 3.3 V)- SMA female antenna connector (50 ohms)- SMA female clock input and output for synchronization- Convenient buttons for programming- Pin headers for expansion- Portable- Open sourceUsing HackRF One's Buttons:The RESET button resets the microcontroller. This is a reboot that should result in a USB re-enumeration.The DFU button invokes a USB DFU bootloader located in the microcontroller's ROM. This bootloader makes it possible to unbrick a HackRF One with damaged firmware because the ROM cannot be overwritten.To invoke DFU mode: Press and hold the DFU button. While holding the DFU button, reset the HackRF One either by pressing and releasing the RESET button or by powering on the HackRF One. Release the DFU button.The DFU button only invokes the bootloader during reset. This means that it can be used for other functions by custom firmware.Package Included:- 1 x HackRF One Board with Shielding Cover Detail photoFAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
