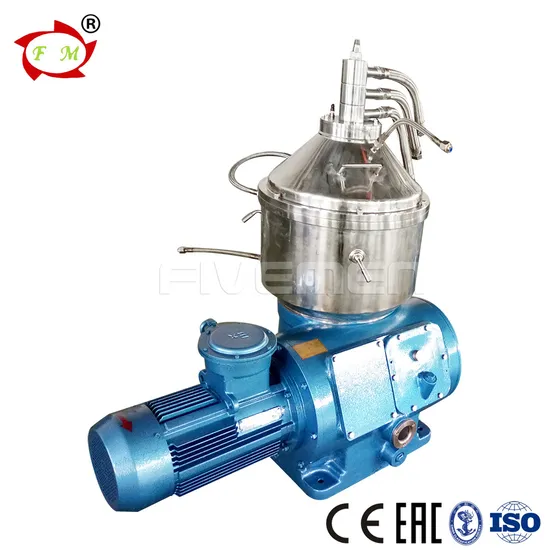

Wine Purification Self Cleaning Disc Centrifuge Yeast Extract Machine

Product Description

Product introduction:
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying operation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
the disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.
For yeast separation, we have two models,one is for solid liquid clarification, which can separate yeast from the fermentation broth .
Yeast disc separator is a type of nozzle slag discharge separator. It is widely used in suspension's solid phase concentration and emulsion's light phase concentration. For example, kinds of yeast's separation and concentration, clarification of clay and pigment's dirty water, recycle of catalyst and high polymer powder. So it is one of the best equipment for yeast factories, alcohol factories, brewery factories and environmental protection departments.
Technical paramete

Model		JMLDP450	JMLDP330
Drum diameter	mm	450	330
Drum rotating speed	r/min	6000	6500
Settlement area	CM2	66*107	40*107
Separation factor		8540	8650
Nozzle quantity	piece	12 adjustment	4
Nozzle diameter	mm	φ1.1,φ1.2,φ1.3	φ0.9,φ1.0,φ1.1
Impurity after clarification	≤4mg/kg,the diameter of particle less than 2μmm
Rated capacity	kg/h	8000~15000	3000~5000
Motor power	kW	11	5.5
Weight	Kg	1100	580
Dimension	L*W*H	1100*700*1600	1000*850*1200

Main parts
Packing and shipping
Application occasion
Company information

---
