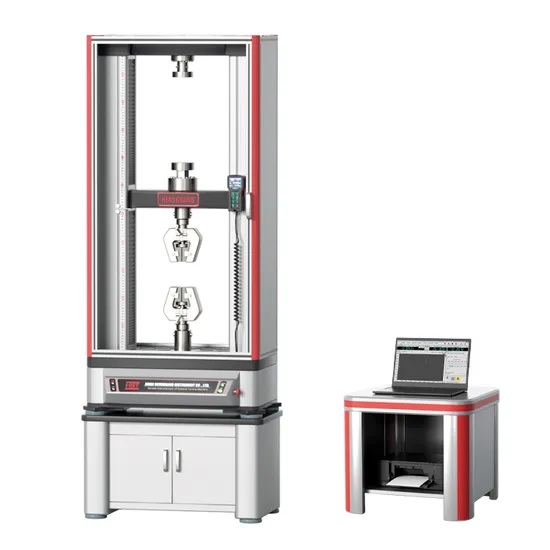

Metal Tensile Compression Shear Bending Test Electronic Benchtop Materials Tester Bench Type Universal Testing Machine 10kN to 20kN

Product Description

50kn 100KN 200KN 300KN Computer Control Electronic Universal Testing Machine
Application
It is mainly for doing tension, compression, bending, shearing, etc. test of metal and non-metal materials. It can be used in all kinds of industries.

Product Parameters Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components.
Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM, D3479, ASTM E517,ASTM, D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Main specifications

Items	Model
	WDW-10E	WDW-20E	WDW-30E	WDW-50E	WDW-100E
Structure	4 Column and 2 Ball Screw
Max. Load(kN)	10	20	30	50	100
Tensile space(mm)	670			770	650
Compression space(mm)	900			1000
Effective test width	450				550
Size(mm)	850 * 590 * 1750			840*570*1850	950*660*2000
Host Weight (kG)	370			420	680
Power Supply	220V/50-60Hz

Items	Model
Model	WDW-200E	WDW-300E	WDW-500E	WDW-600E
Structure	4 Column and 2 Ball Screw
Max. Load(kN)	200	300	500	600
Tensile space(mm)	700	700	800	800
Compression space(mm)	1100	1100	800	800
Effective test width(mm)	600	600	700	700
Size(mm)	1102*870*2395		1450*1140*2730
Host Weight (kG)	2200		4000
Power Supply	380V/50-60Hz

Specifications:

Model	HST WAW-100E	HST WAW-300E	HST WAW-600E	HST WAW-1000E
Structure	6 Column (Four Columns Two Ball Screws)
Max. Load(KN)	100	300	600	1000
Load Accuracy	≤± 1%/ ≤± 0.5%
Load Range	2%~100%FS/ / 1%~100%
Displacement Resolution	0.01mm
Max. Tension Test Space(mm)	780	780	800	950
Max.Compression Test Space(mm)	550	550	650	700
Column Effective Spacing(mm)	485	485	500	560
Max. Piston Stroke(mm)	200	250	250	250
Clamping Method	Hydraulic Clamping
Round Specimen Clamping Range(mm)	Φ4-Φ10, Φ10-Φ20	Φ10-Φ20,Φ20-Φ32	Φ13-Φ26,Φ26-Φ40	Φ13-Φ26,Φ26-Φ45
Flat Specimen Clamping Range(mm)	0-15	0-15	0-15	0-20
Flat Specimen Clamping Width(mm)	80*80	80*80	90*90	100*100
Power Supply	3-phase,AC380V, 50Hz (Can Be Customized)

Specification:

Model	LAW-600E	LAW-1000E	LAW-1200E
Max. Load(kN)	600	1000	1200
Structure	Four Columns Two Ball Screws
Load Accuracy	≤± 1%/ ≤± 0.5%
Load Range	2%~100%FS/ 1%~100%
Load Resolution	1/500000
Deformation Measurement Range	2%~100%FS
Displacement Resolution	0.01mm
Max. Tension Test Space(mm)	1350	1350	1350
Column Effective Spacing(mm)	580	580	610
Max. Piston Stroke(mm)	250
Clamping Method	Hydraulic Automatic Clamp
Specimen sizes (mm)	1*7, Φ9.5-φ21.6	1*7, Φ9.5-φ21.6	1*19, Φ12.7-φ28.6
Compression Plate Size	Φ 160mm
Power Supply	3-phase,AC380V, 50Hz (Can Be Customized)

Specifications:

Model	HST-YAW2000DH	HST-YAW3000DH
Max. Capacity(KN)	2000	3000
Testing space adjust method	Adjusting block
Relative error	±1%
Max. vertical clearance between platens(mm)	320	340
Distance between two columns(mm)	430	500
Upper and low compression platen (mm)	Φ300	Φ300
Max. travel of piston(mm)	120
Piston displacement speed(mm/min)	75	50
Power supply	AC380V/220V/50Hz/(can be customized)

Specifications:

Model	JBDW-450CY-60/800007000	JBDW-600CY-60/80		JBDW-750CY-60/80
Max. impact energy (J)	450	600	750
The distance between the pendulum shaft and impact point(mm)	750
Impact speed(m/s)	5.2
Raised angle	150°
Standard span(mm)	40+0.2
Round angle of the jaw(mm)	R1-1.5
Round angle of impact edge(mm)	R2-2.5,R8±0.05(special order)
Angle accuracy	0.1°
Standard specimen dimension(mm)	55x10x10 , 55x10x7.5 , 55x10x5
Thickness of impact knife(mm)	16
Dip angle of supporting surface of supports	11°
Cooling way	compressor
Capacity of sample box	20
Range of low temperature	-60°c/80°c
Speed of sending specimen	≤2S
Power supply	3phs, 380V, 50Hz Or 220V,60Hz
