| US$3.00 | 100 Meters (MOQ) |

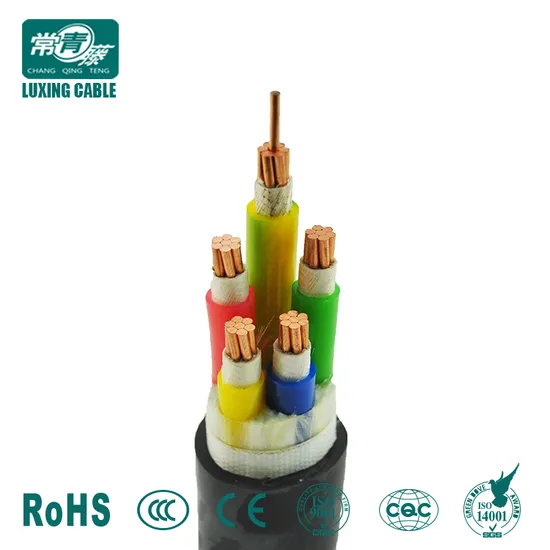

| Product Name | VV (NYY-O/J) (PVC/PVC) 0,6/1 kV POWER CABLE |
| Applications | These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. |
| Conductor | Solid/stranded/flexible copper condutor |
| Insulation | PVC/LSZH |
| Sheath | PVC/LSZH |
| Color | Red,Yellow, Green,Blue or customized |
| Uo/U | 0.6/1kv |
| Operating Temperature | 0~70°C |
| Standard | IEC, BS, VDE |
| Certification | CE,ROHS,SGS,ISO |
| OEM | available |
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm^2 | mm | mm | mm | mm |
| 1x4 | 2.3 | 1 | 1.4 | 7.1 |
| 1x6 | 2.8 | 1 | 1.4 | 7.6 |
| 1x10 | 3.6 | 1 | 1.4 | 8.4 |
| 1x16 | 4.5 | 1 | 1.4 | 9.3 |
| 1x25 | 5.6 | 1.2 | 1.4 | 10.8 |
| 1x35 | 6.7 | 1.2 | 1.4 | 11.9 |
| 1x50 | 8 | 1.4 | 1.4 | 13.6 |
| 1x70 | 9.4 | 1.4 | 1.4 | 15.1 |
| 1x95 | 11 | 1.6 | 1.5 | 17.2 |
| 1x120 | 12.4 | 1.6 | 1.5 | 18.7 |
| 1x150 | 13.8 | 1.8 | 1.6 | 20.6 |
| 1x185 | 15.3 | 2 | 1.7 | 22.7 |
| 1x240 | 17.5 | 2.2 | 1.8 | 25.4 |
| 1x300 | 19.5 | 2.4 | 1.9 | 28.0 |
| 1x400 | 22.6 | 2.6 | 2.0 | 31.7 |
| 1x500 | 25.2 | 2.8 | 2.1 | 35.0 |
| 1x630 | 28.3 | 2.8 | 2.2 | 38.3 |
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) | |
| mm^2 | mm | mm | mm | mm | |
| 3x1.5 | 1.4 | 0.8 | 1.8 | 10.1 | |
| 3x2.5 | 1.8 | 0.8 | 1.8 | 10.9 | |
| 3x4 | 2.3 | 1 | 1.8 | 12.9 | |
| 3x6 | 2.8 | 1 | 1.8 | 13.9 | |
| 3x10 | 3.6 | 1 | 1.8 | 15.7 | |
| 3x16 | 4.5 | 1 | 1.8 | 17.6 | |
| 3x25 | 5.6 | 1.2 | 1.8 | 20.8 | |
| 3x35 | 6.7 | 1.2 | 1.8 | 23.2 | |
| 3x50 | 8 | 1.4 | 1.8 | 26.9 | |
| 3x70 | 9.4 | 1.4 | 1.9 | 30.1 | |
| 3x95 | 11 | 1.6 | 2.1 | 34.7 | |
| 3x120 | 12.4 | 1.6 | 2.2 | 38.0 | |
| 3x150 | 13.8 | 1.8 | 2.3 | 42.1 | |
| 3x185 | 15.3 | 2 | 2.5 | 46.5 | |
| 3x240 | 17.5 | 2.2 | 2.7 | 52.5 | |
| 3x300 | 19.5 | 2.4 | 2.8 | 58.0 | |
| 3x400 | 22.6 | 2.6 | 3.1 | 66.1 | |
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm^2 | mm | mm | mm | mm |
| 4x1.5 | 1.4 | 0.8 | 1.8 | 10.8 |
| 4x2.5 | 1.8 | 0.8 | 1.8 | 11.8 |
| 4x4 | 2.3 | 1 | 1.8 | 14.0 |
| 4x6 | 2.8 | 1 | 1.8 | 15.2 |
| 4x10 | 3.6 | 1 | 1.8 | 17.1 |
| 4x16 | 4.5 | 1 | 1.8 | 19.3 |
| 4x25 | 5.6 | 1.2 | 1.8 | 22.9 |
| 4x35 | 6.7 | 1.2 | 1.8 | 25.6 |
| 4x50 | 8 | 1.4 | 1.9 | 29.9 |
| 4x70 | 9.4 | 1.4 | 2.0 | 33.5 |
| 4x95 | 11 | 1.6 | 2.2 | 38.7 |
| 4x120 | 12.4 | 1.6 | 2.3 | 42.3 |
| 4x150 | 13.8 | 1.8 | 2.5 | 46.9 |
| 4x185 | 15.3 | 2 | 2.6 | 51.9 |
| 4x240 | 17.5 | 2.2 | 2.9 | 58.6 |
| 4x300 | 19.5 | 2.4 | 3.1 | 64.8 |
| 4x400 | 22.6 | 2.6 | 3.3 | 73.8 |
