Xu6325W Turret Milling Machine New Product Provided Vernier Fv 380 Universal Milling Machine

US$5,000.00
1-4 Set
US$4,000.00
5+ Set

Basic Info.

Model NO.
XU6325W
Type
Milling Machine
Object
Other
Structure
Other
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Other
Controlling Mode
Other
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Milling Machine
Table Size
1270*254mm
Longitudinal Travel
750mm
Transverse Travel
400mm
Vertical Travel
400mm
Spindle Speed Range
(V) 16steps 66-4540
Spindle Travel
127mm
Automatic Spindle Feeds
0.04/0.08/0.15
Distance Between Spindle Center and Colu
155-635mm
Distance Between Spindle Nose and Table
0-460mm
Spindle Taper
(H) Nt40
Spindle Motor Power
(V) 2.2 (H)3.0kw
Head Swivel
90 Degree
Machine Weight
1380kg
Transport Package
Wooden Cases
Specification
320X1570*1000mm
Trademark
HAIDI
Origin
China
HS Code
8459590000
Production Capacity
30 Sets/Month

Packaging & Delivery

Package Size
190.00cm * 170.00cm * 255.00cm
Package Gross Weight
1400.000kg

Product Description

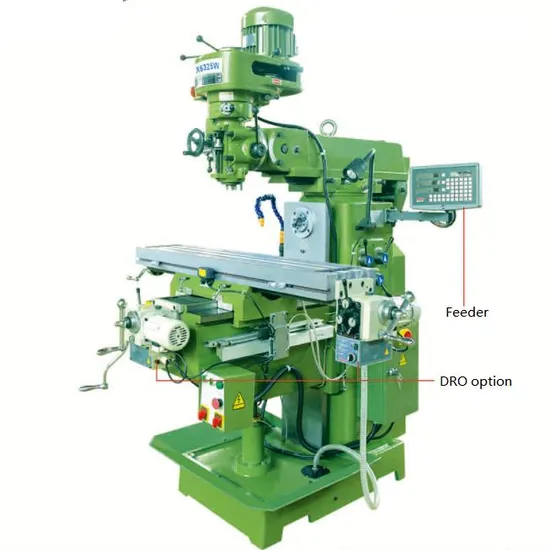

Product Picture
Specification Parameter
Specification Unit XU6325W XU6330W XU6332W
Table Size mm 1270*250 1370*305 1570*320
T SIotS(N/W/D) 3/16/65 3/16/65 3/16/65
Longitudinal travel mm 750(850 manually) 800 1000
Cross travel mm 400 380 380
Vertical travel mm 400 400 400
Quill Trave mm 127 127 127
Distance between spindle center and column mm 155-635 155-635 155-635
Distance between spindle nose and table top mm 0-460 0-460 0-460
Arm Travel mm 400 500 500
Milling Head tilting 90°(Left&Right);45°(Front&Back) 90°(Left&Right);45°(Front&Back) 90°(Left&Right);45°(Front&Back)
Spindle taper R8(V);NT40(H) R8(V);NT40(H) R8(V);NT40(H)
Spindle speed r/min 66-4540(V);40-1300(H) 66-4540(V);40-1300(H) 66-4540(V);40-1300(H)
Power of spindle motor kw 2.2 kw(V);3KW(H) 2.2 kw(V);3KW(H) 3.75 kw(V);3KW(H)
Max. table safety load kg 350 350 350
Machine Diamension mm 1750*1530*2340 1750*1650*2340 1950*1650*2340
Net. Weight kg 1380 1550 1750
