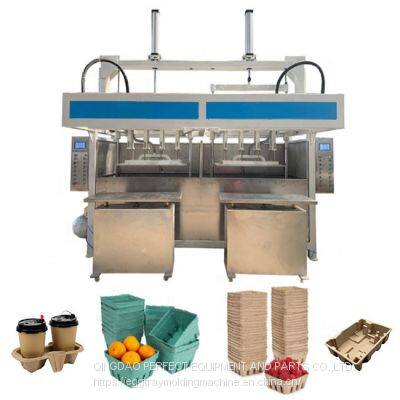

PLC control dual paper pulp molding stations industrial paper pulp container trays egg tray making machine
Model: PFK-GB-2
PLC control waste paper recycling paper pulp packing tray making machine, reciprocating type, special for big height paper pulp industrial packing trays production like coffee cup holder trays, fruit and vegetable packing containers, medical paper pulp trays etc which height is up to 35cm
Total power: 65kw Real power consumption is about 70%
Voltage: 380V 50hz can be customized according to customer country voltage
Production capacity: 1500-1800 pieces per hour (fruit containers)
Operator: 3-4 workers
Plant area: above 80㎡
Drying method: natural sunshine drying
Equipment weight: about 4.2 Tons
Model
| GB500
| GB1000
|
Mold template
| 500*1200mm (customized)
| 800*1000mm (customized)
|
Forming station
| 1
| 2
|
Working speed
| 5-8 cycles/minute
|
Working power
| 55-75KW
| 65-90KW
|
China Manufacturer 4 sides 8 faces rotary drum automatic paper pulp egg tray making machine
Advantages
1. Rotary drum design, energy saving drive motor, low power consumption
2. High precision divider gearbox from Taiwan, International brand bearing, long life span
3. Stainless steel pulp tank, stainless steel pulp pipe, stainless steel machine cover
4. Aluminum forming molds can be customized as your egg tray or paper trays samples
5. Easy to change the forming molds, you can make different shape paper pulp packing trays by quick changing molds
6. 4 sides, 8 sides and 12 sides rotary drum design will different production capacities are optional
7. Brick drying oven, single or multi-layers metal dryer oven can be matched, various heat source (thermal oil, steam, natural gas, diesel oil, coal etc)
Model
| A2000
| A3000
| A4000
| A4500
| A5000
| A6000
| A7000
|
Sides
| 3*4
| 4*4
| 4*5
| 4*8
| 5*8
| 6*8
| 5*12
|
Molds Qty (PCS)
| 12
| 16
| 20
| 32
| 40
| 48
| 60
|
Working Speed
| 10-15 drops/min
| 15-22 drops/min
| 17-20 drops/min
|
Production Capacity
(pieces/hour)
| 2000-2500
| 2500-3500
| 3500-4200
| 4000-4500
| 5000-5500
| 6000-7000
| 5500-6500
|
Power Consumption
| 57KW
| 60KW
| 75KW
| 135KW
| 147KW
| 165KW
| 175KW
|
Water Consumption
| 455kgs/H
| 550kgs/H
| 730kgs/H
| 780kgs/H
| 980kgs/H
| 1150kgs/H
| 1050kgs/H
|
Waste Paper Consumption
| 175kgs/H
| 210kgs/H
| 280kgs/H
| 315kgs/H
| 420kgs/H
| 490kgs/H
| 420kgs/H
|
Waste paper old cardboard box as raw material, water is recycling, no pollution to environment
|
Drying method: sunshine, brick drying oven, single or multi-layer metal dryer
|
The production flow of paper pulp egg box trays
Project Cases of our automatic egg tray production machine with metal dryer
For more details of our egg tray making machines, please feel free to contact with us by what's app +86 18561832088 ! or visit our website
>>
