Double End Grinding Test Lab Equipment (SCM-200)

Product Description

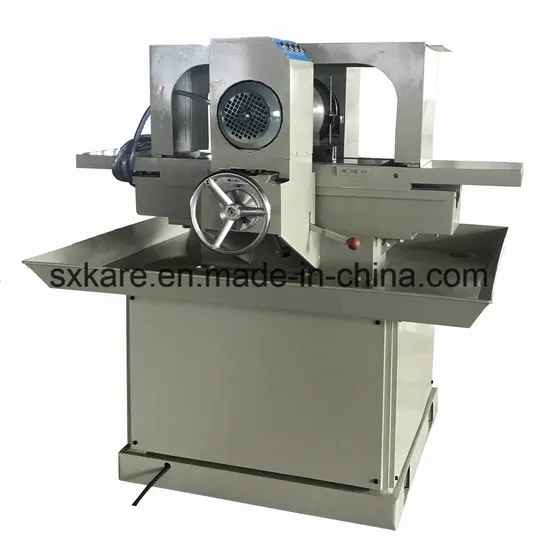

SCM-200 Double End Grinding Test Equipment
The SCM-200 Double End Grinding Test lab equipment is used for milling the double ends of the specimen after cutting and making the high precision specimen. There are C200 diamond milling wheels fixed on the both motion milling heads. Fix the specimen on the work table. To and fro when operating. The milling head could be used automatically, or by manual forward to grinding. The automatic forward speed is adjustable.

Grinding range	≤150×150×150mm
Milling wheel specification	C200×C32×40mm
Grinding motion head power	1.1kW×2
Error	≤0.05mm
Sample accuracy	within 100mm of depth of parallelism, planeness, verticality
Outline dimension	1400×1350×1200mm
Weight	600Kg

---
