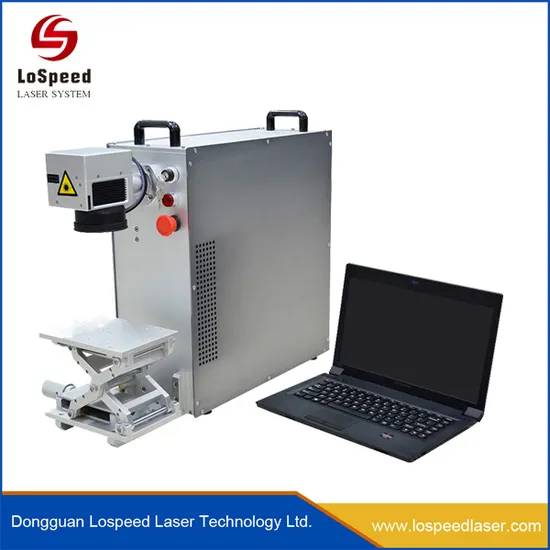

Etching Number Pattern on The Metal and Plastic by Portable Fiber Laser Marking Machine

Product Description

DONGGUAN LOSPEEDLASER TECHNOLOGY CO.,LTD Specilizes in the design and manufacturing of laser MARKING & ENGRAVING & CUTTING MACHINE. Customers around the world trust us to provide a durable, cost effective solution to their permanent identification needs.
Etching Number Pattern On The Metal And Plastic By Portable Fiber Laser Marking Machine
These laser machine cover the spectrum of wavelenghts enabling applications to a wide range of products, from Medical Devices, Jwellery, Instruments to Automotive Components, Delicate Plastics, Ceramics, Glass, Copper, Aluminum, Brass, Iron, Stainless steel, Zinc, Lead and Airframe components and can mark virtually any materials with Text, Bar Codes, 2-D Codes, Logos and Graphics.
Features:
★ Marking are permanent with high abrasion resistance.
★ High precision, fasten speed, consistent marking quality.
★ Exceptional beam quality result into sharp and minuscule marking.
★ Greater than 1,00,000 hours maintenance-free operation.
★ Real-time visible live pointer for preview your mark.
★ User friendly interface, easy operation.
Technical Parameters:

Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

Applications:♦ Jewellery
♦ Automobile
♦ Electronics
♦ Commercial
♦ Engineering
♦ Solar Industry
♦ Tools & Tooling
♦ Medical & Surgical
♦ Aerospace & Defense
♦ Die & Mould Engraving
♦ Kitchenware & Bath Fitting
♦ Color Marking in SS Material

Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment ,etc.,
Instrument:	Panel signs nameplates, precision equipment ,etc.,
Hardware Tools :	Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts :	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts :	Bearings, gears, standard parts, motors, etc.,
Daily Necessities :	Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry Rings:	Jewelry, gold, silver,etc.
Food, drinking packing:	Plastic packings,etc.

Packaging & Shipping
FAQ:
Q: How can I know your machine works well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept L/C ,T/T, Western Union ,PayPal , Money Gram, paying methods.
Q.If we do not know how to use the machine,can you teach us?
A:Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have our professionall engineer to your country,you only need pay for some fee,like tickets, hotel and meal.

Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.
3.With our marking machines your options are never limited as all our machines are available in two versions so you can pick the best marking option to seamlessly fit into your production line.

Looking forward to your inquiry!!!
Contact us for more information:
How to contact us?
Company: Dongguan Lospeed Laser Technology Co.,Ltd
If you have any questions, pls feel free to contact me. Thank you!

---
