Quartzite Slab Press Machine Quartz Making Machine Chinese Tech Synthetic Quartz Marble Machine Production Line High Efficiency Quartz Stone Production Line

Product Description

contact here
Guangxi Hongfa Heavy Machinery Co.,Ltd

Address:Yi Ling Yan Industry Zone , Nanning city , Guangxi ,China
We support both finished slab and slab production line , 3300*1900 mm slab system and 2500*1800mm slab making system production line
artificial quartz stone slab production line artificial quartz marble artificial quartz table top artificial quartz stone making machine artficial quartz stone slabs for kitchen counter
quartz stone factory equipment quartz marble surface machine quartz stone surface machine Calacatta artificial quartz slab production line supplier cost

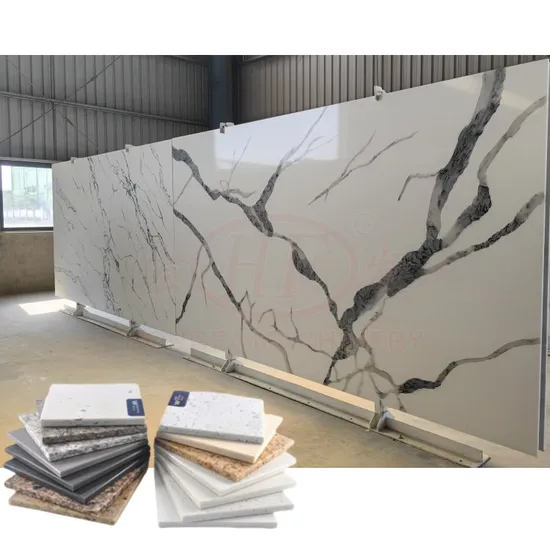

Artificial Quartz Stone Collection Artificial quartz stone is wear-resistant, free of scratching, good heat resistance and with various modern colors and designs, it is one of your best choices for kitchen and vanity tops.
Process of Automatic Quartz Slab Production Line : 1). Quartz Slab Making Process: Enter the formula in the computer --- Raw Materials Weigh System & Transportation System ---- Raw Materials Mixing & Transportation System ---- Laying raw materials ---- Pressing ---- Heating ---- Mold Release ----Off line. 2). Calibration and Polishing Process: Back side Calibration --- Turn slab 180° --- Front side Calibration ---- Front side Polishing --- Edge Trimming --- Cleaning & Drying ---- Printing --- Film Coating --- Warehousing.
Automatic batching system for raw materials
The system is equipped with a storage bin/weighing hopper, made of 304 stainless steel. According to the production plan, each silo is loaded with quartz sand or glass particles of one mesh size. The quartz sand or glass packed in tons of bags is poured directly from the top of the silo into the silo for storage through driving control.
automatic mixing system
This system abandons the traditional mixer design, analyzes the flow characteristics of quartz sand and the running trajectory of the stirring rod, adopts PLC programming and frequency conversion speed regulation, and rotates and revolves as a whole. There is no mixing dead corner in the mixing area, and the quartz granular materials are made within a controlled time. , pigments, initiators, resins, etc. are fully mixed, and the amount of resin can also be reduced. All materials in contact with quartz raw materials are made of pollution-free materials to avoid contamination of the established colors. automatic Feeding system
The feeding system adopts a mechanical lifting and feeding frequency conversion design. The trolley's walking frequency conversion is suitable for the production of various board conditions. It can be used for the automatic production of single-color boards and the production process of the mixing system, and can also produce two-color boards. Automatic cloth design, added with a set of stainless steel wires, is used to cut the sticky mixture after mixing to make the material more uniform. It can well solve the thickness error caused by uneven decoration materials, and the thickness error can be easily controlled to 1mm.
Vacuum press system
The standard configuration of the press can produce finished plate sizes: 3270*1670mm The press is composed of mechanical, hydraulic, pneumatic, vacuum and fully automatic control parts. The design of high vacuum and efficient vibration pressing makes the resin and quartz sand closely combined without pores. The amount of resin is significantly reduced, and the density, specific gravity, and The hardness can reach foreign standards; the design of the vacuum system and proportional control valve minimizes the vacuuming time and improves the pressing efficiency.
Curing oven system
The curing furnace uses double return oil circuits to heat the aluminum plate, which can heat the plate evenly. The oil circuit uses a whole 19x2m round copper pipe without welding or seams, which effectively avoids oil leakage in the heating plate. Ensure that the board is not contaminated. The stroke adopts a ball screw and automatically lifts to ensure safe and stable operation. Reasonable design to reduce floor space. The heating system is highly efficient and can use electricity or natural gas (optional) as the heat source.
calibration machine system , polishing system , automatic uploader and down load automatic stacking system
this is a professional grinding and polishing production line for treatment artificial quartz slab , the slab will use a automatic vacuum sucker mechanical arm loading and unloading , high efficiency grinding calibration and polishing.
The raw materials of the quartz machine plant and quartz stone production line
Quartz is a mineral resource with very stable physical and chemical properties. Quartz stone is an abbreviation for the plates produced by current quartz stone plate manufacturers. Because the main component of the plate is quartz content of more than 93%, it is called For quartz stone.
Application, and advance
kitchen tops, bathroom vanity top,worktops, laundry,table tops,bench top, bar tops, backsplashes, shower stalls, tub surrounds ,wall tile, wall cladding, floor tile, and airport, station, shopping mall, hotel, bank, hospital,etc. 1. Eco-friendly material, non radiation to health, non melamine. 2. Anti bacteria, and chemical resistant, high plasticity, nearly zero water absorption. 3. Easy maintenance; can be renewable after long time using
Hongfa Group support equipment series
1. Concrete block making machine
2. EPS lightweight panel production line
3. AAC block production line
4. Concrete batching production line
5. Colorful roof tile /terrazzo tile / artificial stone machine
6. Concrete pipe production line
7. Artificial quartz slab production line
8. Environmental protection equipment
9. Power station equipment
10. Mining equipment
11. Cement making equipment
12. Fiber cement board/ calcium silicate board production line
13. Quicklime kiln production line
14. Prefab house precast concrete panel/ PC Circulation production line
15. Terrazzo stone Inorganic terrazzo production line
