Hot Sale Cheap Road Manual Concrete Bricks Laying Machine Low Price

Product Description

Product Description

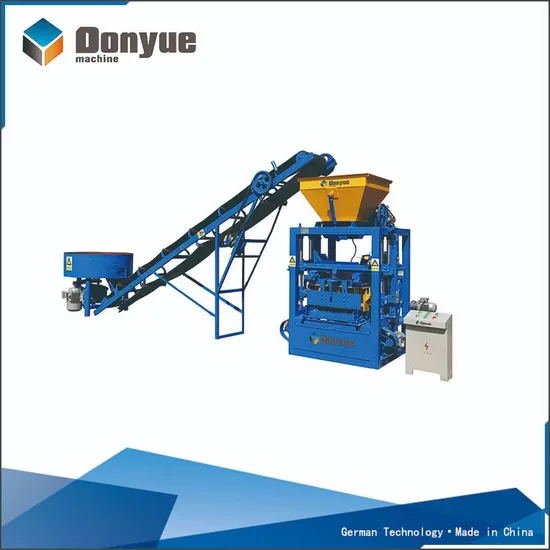

1.QT4-24 block machine is one of our newly designed block making machine. With less power. 2.It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
3.It uses Mode 350 speed reducer to raise and lower the mold, so it greatly increases the usage life of the speed reducer.
4.It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.
Product Parameters

QT4-24 Theoretical Production capacity
Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200	7	630-840	5040-6720
400X150X200	5	450-600	3600-4800
400X200X200	4	360-450	2880-3600
400X250X200	3	270-360	2160-2880
200X200X200	6	540-720	4320-5760

3.Main technical parameters

Dimension of host machine	2060×1730×1850mm	Host machine power	13.4KW
Voltage	380V	Vibration force	35.5KN
Moulding period	20-24S	Capacity	22KW
The size of the pallet	850×550×25mm	Mixer model	JD350
Weight of the machine	1.56T

Finished Product
The machine can produce various hollow bricks, solid bricks and pavers by changing the moulds. The following bricks are some common brick types. At the same time, we can customize the brick moulds for you according to your specific requirements.
