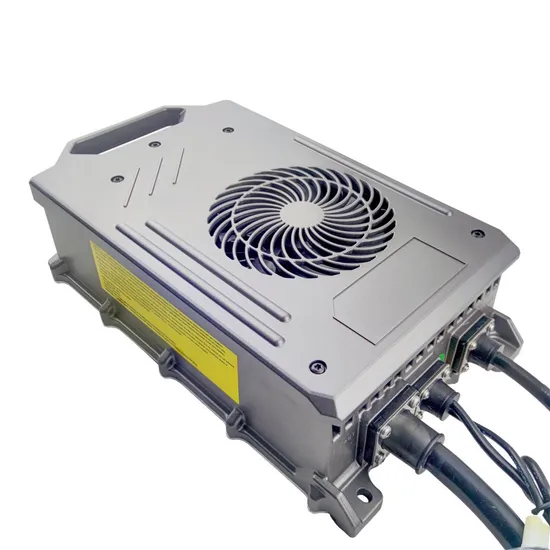

3kW/3000W OBC/on board charger/ 72V35A/60V35A/48V50A/24V50A/Factory supply used in EV

Product Description

3000W on board charger For EV/ 48V50A/60V35A/72V35A/144V20A/320V10A

Models	Rated Voltage for Battery Pack	Max Output Voltage	Max Output Current
3000BG24	24V	33V	50A
3000BG36	36V	50V	50A
3000BG48	48V	68V	50A
3000BG72	72V	103V	35A
3000BG96	96V	120V	30A

TECHNOLOGY PARAMETERS
AC Input Voltage Range: 120~240VAC;50Hz/60Hz
AC Input Max Current:13A @120VAC; 15A @120VAC
Power Factor:≥0.99
Efficiency:≥94.0%
Noise:≤55dB Protection:IP65
PRODUCT CHARACTERISTICS
SAFETY
Active PFC and LLC technique is used for a rapid response on a fault; Quick active software and passive hardware protection on voltage¤t;Advanced charging strategy is applied as safeguard for the battery.
RELIABILITY
The shell is shaped by integrated die casting technique and filled with special glue. This series of chargers had been operated in all kinds of industrial environment (Wet, Hot, Cold, high altitude) for more than ten years to pass verification.
FUNCTIONS
CAN BUS Interface;
Triple Colors Indicator;
Vehicle Charging Lock System;
12V auxiliary power supply ;
CERTIFICATE
UL/CB/CE/PSE/RCM/FCC/CEC/DOE......
SIZE AND WEIGHT&TEMPERATURE
Net Weight:6kg
Operating Temperature:-30ºC-65ºC(-80ºF~149ºF)
Storage Temperature:-40ºC-95ºC(-104ºF~203ºF)
PROTECTION FEATURES
Burnout Protection: If temperature of charger exceeds the limitation, the charger will low down the power load. If environment temperature exceeds 65ºC, the charger will stop charging and switch itself to standby mode until the temperature goes down.
Protection for Reverse Connection of Batteries: The circuit inside the charger shuts down when the batteries are connected reversely.
NO-load Protection:There is no output when the battery is not connected.
Short Circuit Protection: The circuit inside the charger will shut down when output is short-circuited.
Automatic shutdown when fully charged:The charger automatically turns off after the battery is fully charged. On-Board Charger Dimension
Product Show

---
