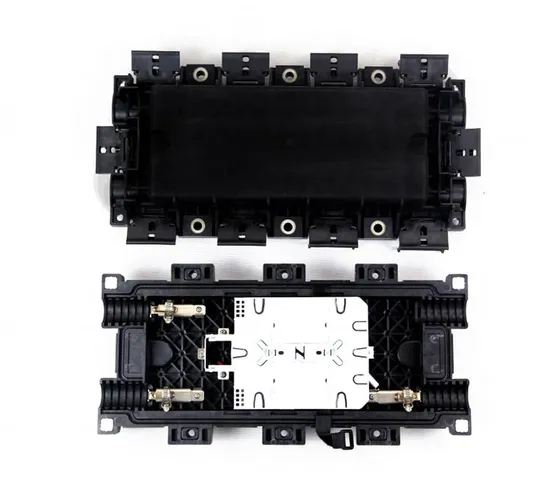

Clip Type in-Line Fiber Optic Splice Enclosure

Product Description

Clip Type ( Screwless) In-line/Horizontal Splice Closure

It can be used to connect and branch fibers in aerial locations, ducted applications, direct buried manholes.
The case body is made from high-intensity engineering plastics and formed the shape will mold plastics under high pressures. High mechanical intensity, corrosive-resistance, anti-thunderstruck and long service.

Model	GP01-H9JM4	GP01-H10JM4
Material	PP alloy	PP alloy
Applicable Cable Dia.	Φ12.5 ~ Φ 22 mm	Φ12.5 ~ Φ 22mm
Product Dimension	498*217*134 mm	400*174*113 mm
Inlet and outlet	2 inlet and 2 outlet	2 inlet and 2 outlet
Max. Capacity of splice tray	24 core (single fiber)	24 core (single fiber)
Max. Splice Capacity	Axial turning way: 144c (single fiber) , 432c ( Ribbon 12c fiber) Lateral turning way:96c (single fiber) , 192c ( Ribbon 12c fiber)	Axial turning way: 96c (single fiber) , 216c ( Ribbon 12c fiber) Lateral turning way:96c (single fiber)
Reopen	Available	Available
Duration	25years	25years
Application	Aerial, Direct buried, Manhole,Pipeline	Aerial, Direct buried, Manhole, Pipeline
Sealing Method	Unvulcanized Butyl Rubber Strip	Unvulcanized Butyl Rubber Strip

Features:
1. Excessive fibers can be stored under the splice tray bracket. Easy in fiber management.
2. The splice trays can take off for fiber to access to any splice tray, without disturbing other trays.
3. The inner parts and fixing parts are made of stainless steel
4. With a earthling device protect it from damage by lightning

Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimeter(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius: 30mm. Low optical loss

---
