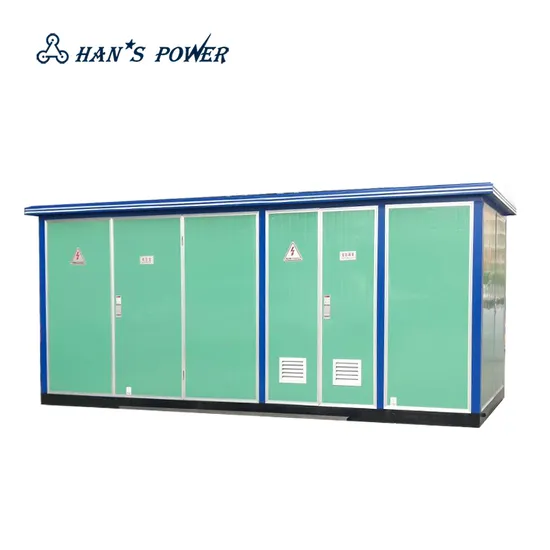

High Quality European Box-Type Preassembled Transformer Substation/Enclosure Box Type Power Substation

Product Description

Overview
Product Description
Pre-assembled Power Transformer Substation
YB series
European box type
Model number descriptions:
Fully complies with the GB17467 standard for high/low voltage prefabricated substations.
Suitable for urban public power distribution, street light distribution, industrial and mining enterprises, urban buildings, residential communities, oil field docks, hotels, parks, and construction sites, etc., It can realize loop power or terminal power supply mode.
Working conditions:Altitude: ≤ 1000m;Environmental temperature: -25 ºC~+40 ºC, (highest monthly average temperature+30 ºC, highest annual average temperature+20 ºC)Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%Seismic resistance level: horizontal acceleration of 0.4m/s ², vertical acceleration of 0.15m/s ²Installation location: No severe impact, no serious pollution or chemical corrosion, no conductive dust, and no explosion hazard.Specifications

No.	Item	Unit	High voltage apparatus	Transformer	Low voltage apparatus
1	Rated voltage	kV	6/10	6/0.410/0.4	0.4
2	Rated capacity	kVA		≥50
3	Rated current	A	200, 400, 630		100~3200
4	Rated short circuit breaking current	A	Load switch 400-600		15~63kA
		kA	Depends on thefuse if it's combination switch
5	Rated short-time withstand current	kA	16, 20(4s)		15(1s)
					30(1s)
6	Rated peak withstand current	kA	31.5, 50		30
					63
7	Power frequency withstand voltage (1min)	kV	Relatively and alternately 32/42	25/35(oil)	≤0.3, 2
			Isolating fracture 36/48	20/28(dry)	>0.3, 2.5
8	Lightning impulse withstand voltage (peak value)	kV	Relatively and alternately 60/75	60/75
			Isolating fracture 70/85
9	Box protection level			IP44 IK10
10	Noise level	dB		45
11	Executive standard		GT/T 17467
			DL/T 537

Detailed Photos
Company Profile
Exhibition
CertificationsISO 9001ISO 14001ISO 45001ISO 5000168 PatentsFAQ1. Are you the manufacturer or trader?
HANS POWER is a professional manufacturer in power
transmission and distribution products for over 20 years.
2. What's your major product?
Oil immersed transformer, Dry type transformer, Transformer
substation, High and low voltage switchgear.
3. What's the payment terms?
T/T, LC or Cash
4. How long the lead time will be?
It depends on the product and quantity of the order,
usually it takes 15~40 working days.
5. Can your products be customized?
Sure, we provide OEM&ODM service.
6. How is your package?
Sturdy wooden box package, or any other packages
according to customer's requirements.
7. What certifications do you have?
ISO9001, ISO14001, ISO45001, ISO50001 certificated.
And complete test reports for products.
8. How long is the guarantee?
We offer at least 1 year guarantee.

---
