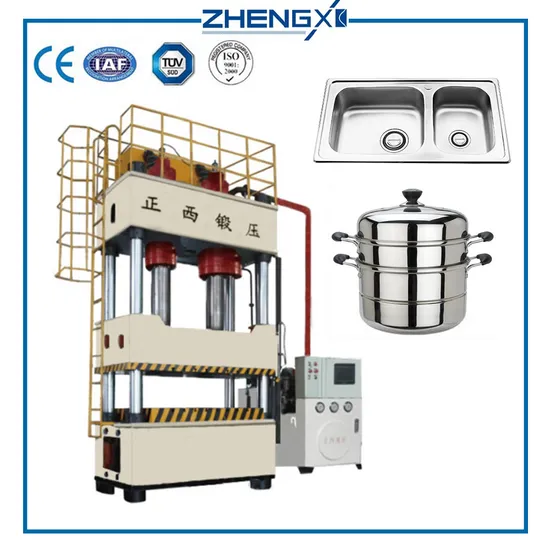

Zhengxi Four Column Hydraulic Press Machine

Product Description

Flexible high volume production. Hydraulic press lines are mainly used to manufacture a wide variety of parts in small to medium lot sizes. Depending on the required forming operations, the line typically consists of between four and six single presses. The production process is fully automated from the blank to the finished component. Depending on the requirements, automation is provided by either conventional robots or Crossbar Robots. The control and visualization systems of the hydraulic press lines provide a user-friendly operation environment. They also feature efficient fault diagnostics and clear administration of all the process and die data for presses and automation systems.
Hydraulic press 4 column hydraulic Sheet metal deep drawing
Features
1.Hydraulic machine that used the hydrostatic pressure to process metal, plastic, rubber, wood, powder and other products .
2. It is commonly used in the pressing process and press forming process, such as: forging, stamping, cold extrusion, straightening, bending, flanging, sheet metal deep drawing, powder metallurgy, press-fit etc.
3.Significant technical and economic advantages in reducing weight, reducing the number of parts and the number of molds, improve the stiffness and strength, reduce production costs, etc.
Parameter

Model		unit	Yz24-50T	Yz24-80T	Yz24-100T	Yz24-150T	Yz24-160T	Yz24-200T	Yz24-250T	Yz24-350T
Nominal Force		KN	500	800	1000	1500	1600	2000	2500	3500
Ejection force		KN	250	400	500	600	750	1000	1000	2000
Return force		KN	25	50	80	55	100	120	140	200
Working pressure		MPA	20	20	20	20	20	20	20	20
Stroke		mm	460	400	540	550	550	550	600	600
Ejection stroke		mm	220	200	250	300	300	300	300	300
Slide speed	Down	mm/s	225	200	240	125	205	185	115	135
	Pressing	mm/s	15~25	15	18-28	23	23	18-28	18-28	18-28
	Return	mm/s	220	165	240	230	220	200	190	195
Table size	Left-right	mm	500	600	650	700	880	880	880	950
	Front-back	mm	560	700	750	800	990	990	990	1060
Motor power		KW	11	15	18.5	30	30	37	30	55

After-sale service
1.Personnel training
Free training for about one week.
2. After-sale service
One year warranty.During warranty period,free maintenance service can be provided.(except man-made faults or damages arising from irresistible natural factors)
3.Installation
Customers need to pay the commission to our proffessional engineer, and travel expense is on foreign customer.(Including round ticket and accommodation cost)

---
