China Brand Expert Cheapest Mini Bagger Machine Hydraulic Hammer Micro Digger Prices Small Crawler Excavator for Sale in Japan Malaysia

Product Description

Preduct description:

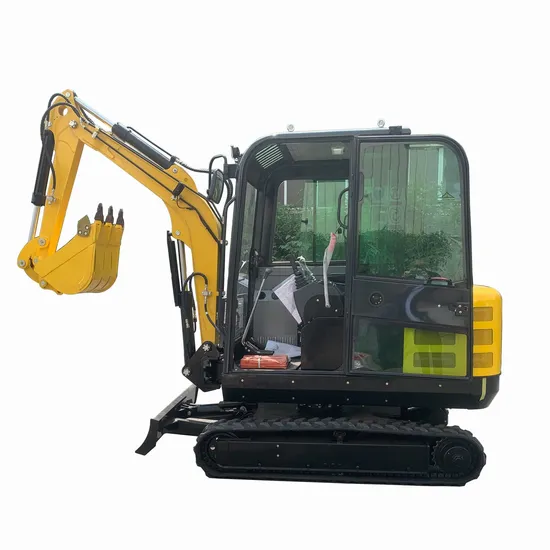

China factory cheap price new mini 3.5 ton crawler excavator machine for sale

As a professional manufacturer and trading enterprise, specialized in the export of Excavators, wheel loaders, tractors,forklifts and all kinds of attachments, around 12 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,and Specialized testing,we ensure every machine that you received has very reliable quality and stability.
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
Pictures as follow:
CP35 Excavator including:
- Operating Weight :3500KG
- Bucket capacity:0.06cbm
- Kubo ta,18.2kw engine
- Hydraulic steering
- New adjustable seat
- With a standard bucket
- Easy-damaged spare parts
CP35 Excavator Specs:

Model	CP35
Operating Weight	3500kg
Digging bucket capacity	0.06cbm
Digging bucket width	600mm, can add narrow bucket is 300mm
Engine	CHANGCHAI/YANMA/KUBOT
Rated power	18.2kw/
Displacement	8.9ml/r
Bore stroke	3 cylinder, fan cool
Hydraulic oil tank	35L
Diesel oil tank	12L
Arm digging force	1.2Kn
Bucket digging force	17Kn
Electric pressure	12V
Electrick power	5W
MAIN DEMENSIONS
Overall dimension( LxWxH)	4370 x 1450 x 2400mm
Wheelbase	1450 mm
Total length of track on land	1500mm
Platform ground clearance	300 mm
Platform back turning radius	990 mm
Chassis width	1450 mm
Track width	220 mm
Chassis ground clearance	180 mm
Track height	300 mm
OPERATING RANGE
Max. Digging depth	2400 mm
Max. Vertical digging depth	1550 mm
Max. Digging height	3850 mm
Max. Dumping height	3000 mm
Max. Digging radius on ground	4300 mm
Min. Rotation radius	1800 mm
Max. Upgrade height of bulldozer blade	400 mm
Max. Digging depth of bulldozer blade	300 mm

Pictures:
Packaging & Delivery:
- 2 set in a 20GP, need to remove cabin,
-5 sets in a 40HQ,just drive them into the container
- Triangle wood and 10mm wire fixed.
Company Information:
Our service:
Certifications:
FAQ:

---
