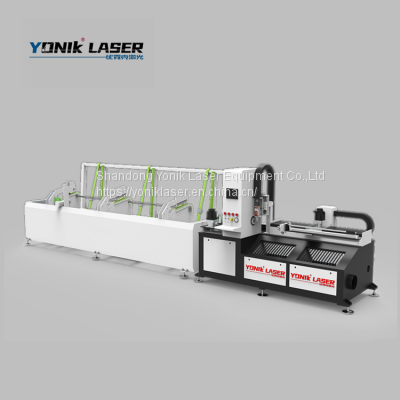

YONIK -JA Series Automatic Pipe Cutting Machine

Product Details

Product Description

Product Description
YONIK -JA Series Automatic Pipe Cutting Machine
Fully automatic feeding rack, which can realize automatic feeding of the whole bundle, saving time and effort;
Servo motor fixed-length cutting, fast speed and high precision;
With slag extraction device to ensure that the inside of the pipe is clean and free of slag.
Technical Parameter

Model	YONIK-6004JA	YONIK-6007JA			YONIK-6009JA
Profiling Cutting Sizes	Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ40mm	Profile Length≤6500mm, 5mm≤Round Pipe Diameter≤φ68mm			Profile Length≤6500mm, Φ5 Mm≤Round Pipe Diameter≤φ90mm
Automatic Feeding Profile Size	Profile Length≤6500, Φ5mm≤Round Pipe Diameter≤φ40mm	Profile Length≤6500, 5mm≤Round Pipe Diameter≤φ68mm			Profile Length≤6500, Φ5 mm≤Round Pipe Diameter≤φ90mm
Single Pipe Weight	≤50Kg	≤80Kg			≤100Kg
Z Axis Travel	150 mm	150 mm			150 mm
Tail Material	50mm		50mm	50mm
Y Axis Positioning Accuracy	±0.05mm/m
Y Axis Repositioning Accuracy	±0.03mm/m
Y Axis Max Acceleration Speed	1.5G
Y Axis Max Speed	85 m/min
Max Rotating Speed of Chucks	150r/min

---
