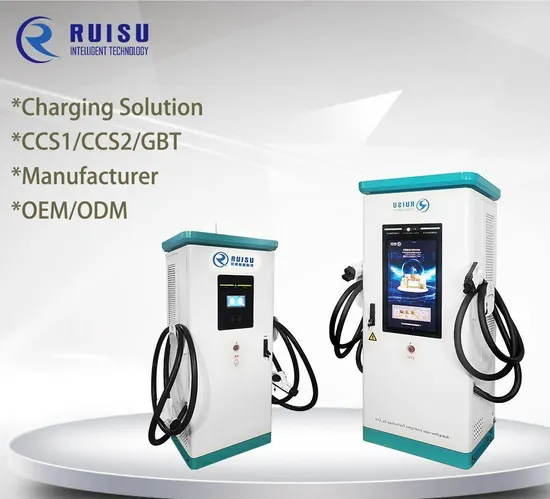

120kw Super Fast DC EV Charger Commercial Use Quick Car Charger Gbt

Product Description

Product Description Product Description
Product Parameters

80/160/240kW Integrated Charger
Input Characteristic	Input voltage	480 VAC +/- 10%
	Input frequency	60 Hz
	Input type	3P + N + PE
	Input current	289AMax
	Input power	80/160/240KW Max
	Power factor	0.99
	THDi	<5%
	Grounding type	TN-S, TN-CS
Output Characteristic	Connector options	CCS1 CCS1+CCS1
	Output voltage	CCS1: 50-1000 Vdc 300~1000V is the output voltage of constant power output.
	Maximum output current	CCS2: 200A, 300A Optional
	Rated power	DC: 80/160/240kW
	Peak efficiency	96%
Environment	Operational altitude	<2000 m
	Operating temperature	-25 °C to +50 °C (Full power)
	Temperature derating	Up to 50 °C: 100% output power, 50-65 °C interval, linear power limit, 65 °C or more, module shutdown protection.
	Storage temperature range	-30 °C to +70 °C
	Humidity	5 %-95 % Rh non-condensing
Structure	IP and IK rating	IP54/NEMA 3R
	Dimensions	1966mm x 830 mm x824 mm
	Weight	≤520 kg
Components	Cable length	5m (4.5m exposed from the charger)
	Screen	9 or 28 inch touch display
	RFID Reader	ISO 14443 A + B to part 4 and ISO/IEC 15693, Mifare1, NFC
	Emergency button	Yes
Others	Communication interface	4G / LAN Port
	Language	English (Support customizing other languages)
	Communication protocol	OCPP1.6/2.0
	Cooling method	Air cooled
	Payment method	RFID / APP (Mobile phone / Visa / Master is optional)
	EMC	Class A (industrial)
	Protection	Undervoltage protection, Overvoltage protection, DC Overcurrent protection, Over-temperature protection, Surge Protection Device, Emergency Stop Protection
	Optional functions	Tilt detection, flood detection, smoke detection, heater, cable management
	Two guns	RSDC1000-240k-FA2206,SDC1000-160K-FA2206,SDC1000-240K-FA2206
	Single Shot Optional	RSDC1000-240k-FA2106,SDC1000-160K-FA2106,SDC1000-240K-FA2106
Standards and Certifications	Protocol	DIN 70121/ISO15118/
	Standards	UL 2202 ,UL 2231,UL2594
	Certifications Mark	SGS UL

Company Profile
Our company Introduction Guangzhou Ruisu Intelligent Technology Co., Ltd., established in 2006 with a registered capital of RMB 51 million, is a high-tech enterprise in Guangdong Province. In 2016, Ruisu was listed on the National Equities Exchange and Quotations (NEEQ) with stock code of 839697.
It is High-tech, High-growth, New Technologies, New Businesses, New Models and New Industries Strategy in Guangzhou.And Ruisu has 54 patents (44 granted, including 5 invention patents). Ruisu has 2 plants covering an area of more than 50,000 m2 (Squire Meter), with nearly 30,000 m2 of workshops and 400~500 employees.
Our company is an enterprise with professional production qualifications, and has profound technological accumulation and market influence in the charging and energy storage industry. We have obtained ISO 9001 quality management system certification and strictly follow national and industry standards for production and management, ensuring high standards and quality of our products.
Guangzhou Ruisu is a technology enterprise focusing on R&D and innovation, and has significant R&D achievements in power module and charging technology. Inl terms of power modules, the single power module reaches 120KW, and the maximum power of the two-way energy storage power supply reaches 200KW. In terms of charging technology, the company has developed high-power megawatt-level chargers with maximum power of 1200Kw to 3MW, using liquid-cooled cooling cabinetsland MCS charging gun output. The maximum current of a single gun can reach 2000A, and the voltage is 1500v. The chargers are suitable for passenger cars,commercial vehicles, electric heavy trucks, construction machinery electric mining cards, electric ships and other new electric construction machinery and heavyvehicles. At the same time in the domestic we research and develop 320KW machine vision system plug-in gun charger, 3WM machine vision plug-in gun charger,1.5MW 1000V 1500A single gun charger and other projects.
Factory:
Product Route
Packaging & Shipping Packaging:
Production Process:
Solution:
PV- storage-charge:
Case
EV CVharging Station Project
Customer Visit Factory
Certifications Certification:
Stratrgic Cooperation: FAQ 1. who are we?
We are based in Guangdong, China, start from 2006,sell to Northern Europe(25.00%),Domestic Market(20.00%),Western Europe(20.00%),Mid East(10.00%),North America(10.00%),South America(10.00%),Southern Europe(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
EV chargers,EVSE,Electric Vehicle Charging Station,EV charging pile,EV charging station
4. why should you buy from us not from other suppliers?
We are the EV charger expert integrating EV charger R&D, production, sales and maintenance ect.We have the No.1 market share in high power liquid cooled charging equipment currently.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese

---
