Niuli 8t Movable Hydraulic Dock Ramp

Product Description

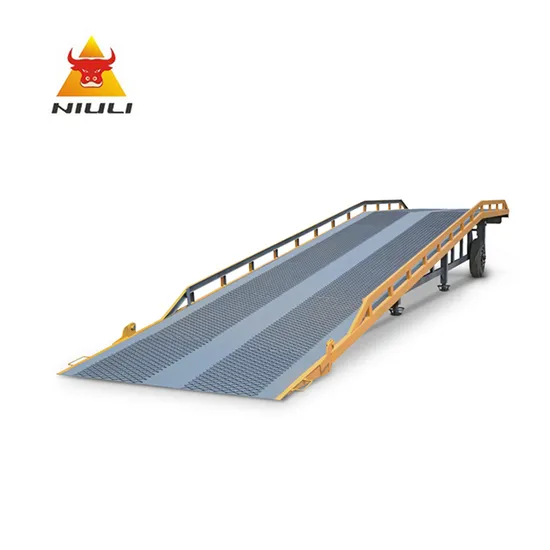

Movable Type Hydraulic Dock Ramp
DCQY Movable Type Hydraulic Dock Ramp is a specail accessory equipment which can realize rapid load and unload and goods, moreover, its height adjustment funcation foems a bridge between truck and goods table of storeroom. Fork vehicles can drive directly to carriages from ground to carry out batch load and unload tasks. It can successfully realize rapid load and unload of goods by single person. And it can reduce a large number of manpower, geminately improve working efficency, Speed up circulation efficiency of materials and so as to gain greater economic benefit.
DCQY6.0T/0.4M Movable dock ramp ( Capacity: 6.0T Length: 10800mm)
DCQY8.0T/0.4M Movable dock ramp( capacity: 8.0T Length: 10800mm. )
DCQY10. T/0.4M Movable dock ramp( capacity: 10T Lenge: 11800mm)
Note: Color and special specification can be made according to customers' demand

Model	Capacity(kg)	Level length(mm)	Slope length(including the pedal)(mm)	Total width (mm)	Working width (mm)	Adjust height (mm)
DCQY6.0T-0.8	6000	3000	7000	2000	1800	1200-1600
DCQY8.0T-0.8	8000	3000	7000	2000	1800	1200-1600
DCQY10.0T-0.8	10000	3000	8500	2000	1800	1200-1600

---
