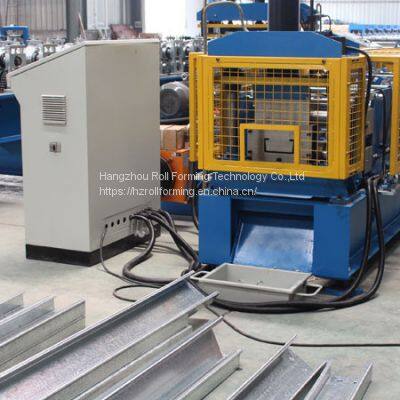

C Purlin Roll Forming Machine 202108

Product Details

Product Description

Product Description
The C purlin roll forming machine produced by Hangzhou Roll Forming Technology is manufactured with advanced technologies. Not only does this series have a beautiful design, but it is also greatly economical and practical. This C purlin forming machine series uses the industrial-grade computer motion control system to assist its intelligent digital operation interface. With the superior humanized design, our C purlin machines are easy to use. It possesses both stable performance and reliable quality!
Features and Advantages of C Purlin Roll Forming Machine
· Fully automatic continuous C profile purlin roll forming machine for both heavy and light-duty use.
· Adopts changing spacers to make multi sizes profiles sections.
· Inline flexible punching system integrated
· Pre-cutting and Post cutting is optional: If need to produce many sizes, we can adopt pre-cutting to save cost and much time on changing blades during change sizes.
· If profile sizes are not so many, post cutting can improve profile quality greatly.
· Forming speed: 12-15 m/min
· Certified with Multi-Patents: CE Certified, EUROPEAN quality standard
· For most hot & popular profile models, we have ready machines in stock for prompt delivery.
Suitable Coil Sheet Material for C Purlin Roll Forming Machine
Suitable material: Cold/hot Rolled Steel, Galvanized Steel
Thickness: 2.0-3.0(mm)
Yield Strength: 230-300 (MPa)
Width: as profile requests
Production Line Components and Parameters of C Purlin Roll Forming Machine

1. Decoiler	3t/5t Motor/hydraulic motor/passive (optional)
2. Feeding table
3. Leveling device
4. Holes punching device	as profile requests
5. Roll forming system	12-15m/min
6. Safety cover	optional
7. Post cutting device
8. Output System	Manual supporter/ Automatic Stacker (optional)
Stackmaster	(Output direction) Lateral/Longitudinal (optional)
9. Hydraulic system	Power supply for holes punching /post-cutting system
10. Electric control system	MITSUBISH/ SIEMENSE/AMS (optional or as requested )

C Purling Making Line Layout
Working Flow of C Purlin Roll Forming Machine
C Purlin Installation
C Purlin Roll Forming Machine Application
C-shaped steel is widely used in purlins and wall beams of steel structures, and can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of mechanical light industries. As the features of green, solid, economical, durable, fast & easy to install and good looking, steel purline and other steel building materials are used more and more widely.
Popular C Purlin Profile Drawings
Finished C Purlin by C Purlin Roll Forming Machine
Specification of C Purlin Roll Forming Machine

Machine Condition	Fully New, A Grade quality
Panel Shape	As profile drawing and customer’s requirements
Operator	needed 1-2 persons
Power Supply	220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weight	About12t
Dimension	(L*W*H) about 25*3*2m
LOADING SIZE	Normally need 1x 40' (+ 1x20GP)container.
Equipment Color	Normally Blue/White, or as requests;
Place of Origin	Zhejiang, China (Mainland)
Packing	Standard and careful export packing

Related Products of C Purlin Roll Forming Machine
Related Articles
Hangzhou Roll Forming is a professional c purlin machine manufacturers, we provide c channel forming machine, c stud roll forming machine, cold roll forming machine and etc. Want to know more? Please contact us.

---
