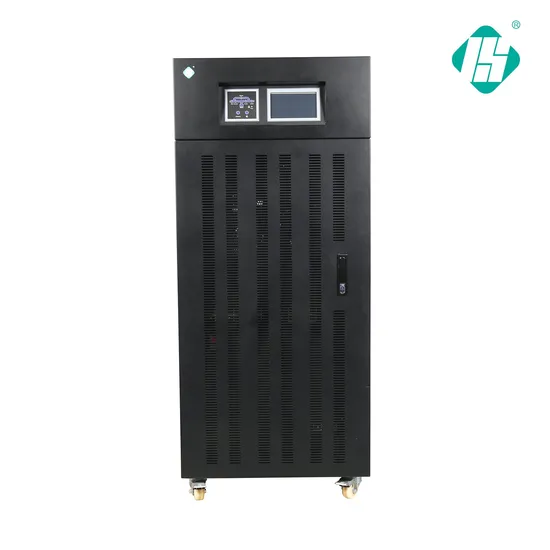

Cpn Series 100kw 125kVA Solar Inverter for Supermarket

Product Description

Detailed Photos

Model No.

CPN10K

CPN15K

CPN20K

CPN30K

CPN40K

CPN50K

CPN60K

CPN80K

CPN100K

CPN120K

CPN160K

CPN200K

CPN500K

Rated Power

10KW

15KW

20KW

30KW

40KW

50KW

60KW

80KW

100KW

120KW

160KW

200KW

500KW

Peack Power

30KW

45KW

60KW

90KW

120KW

150KW

180KW

240KW

300KW

360KW

480KW

600KW

1500KW

Battery Voltage

192V/220V/360V/384V

220V/360V/384V

360V/384V

PV input range

AC Input

Phase

R.S.T+N+G

Input voltage

380VAC+-20%

Input frequency

45HZ to 65HZ

AC Output

Output voltage

Inverter Mode:380VAC+-20%,AC mode:380VAC +-20%

Frequency range(AC Mode)

45HZ to 55HZ

Frequency range(Inverter Mode)

50HZ +-0.1%

Overload capapcity

Under AC mode: 100% to 110%:10 mins 110% to 130%:1 min over 130%:1s

Under Inverter mode: 100% to 110%:30s 110% to 130%:10s over 130%:1s

Conversion time

less than 10ms for typical loads

Waveform

Pure sine wave

Effcienty

More than 85%

Working conditions

Operation temprature

0 to 40 degree Battery life decreases at ambient temperatures above 25 degrees Celsius

Operation humidity

less than 95% without condesing

Operation Altitude

<1000m(every increase of 100m,it will reduce output of 1%) max 5000m

Noise

less than 58dB the distance to machine is 1 meter

Management

Display

7 Inch touch screen

Communication interface

RS485 or RS232

FAQ
1. What is your company strength?
Strong R&D Team Headquartered in Shanghai, Lersion R&D team has over 50 engineers. Relying on Shanghai's rich talent resources and innovating mechanisms, through deep cooperation with Shanghai universities, we design and continually improve solar inverters and battery circuit,and have obtained over 30 patents.
2. What is your product advantage?
1KW-500KW Full Series Solar Inverter available Germany Infineon IGBT Module America DSP Chip Technology Color Touch screen *More Durable*More Safe* more stable *High End LiFePO4 & Gel battery Expert Grade A Lithium Battery Long cycle life >6000 cycles High Efficiency & Fast Charging Intelligent Battery Management Compatible with Various Inverters
3. How do you control the product quality?
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard. b) In production have 4 times function testing. c) All of our products with 100% burn-in testing. d) 100% QC testing before delivery.
4. Do you accept OEM/ODM?
Yes, we do.
5. Are you factory ?
Definitely.
6: Can you provide full solar system?
Yes,we provide full set soalr system ,with system design and full system equipments provided
7.How about the delivery time?
3 to 5 days for sample; 7-15 days for bulk order.
8.What is the warranty of inverter?
A4: 2 years ,3 years,5 years Etc
9: How to solve the technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.

---
